» » » Metallkraft Hydraulic metal belt saw BMBS 250 x 315 H-DG

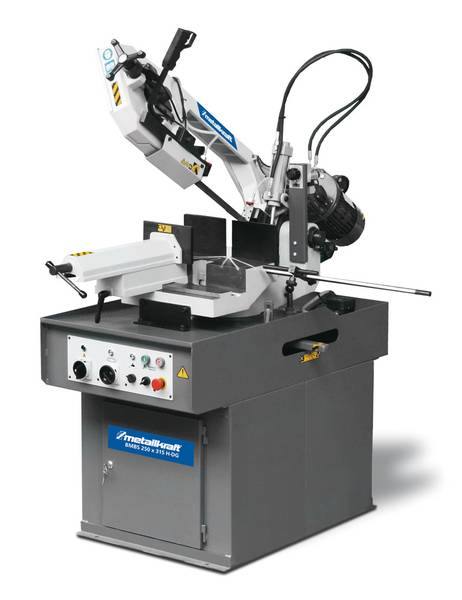

Metallkraft Hydraulic metal belt saw BMBS 250 x 315 H-DG
|
| |
| BMBS 250 x 315 H-DG - Hydraulic metal belt saw with arc for mitre cuts up tofrom -60° up to +45° |
| |
|
· To saw e.g. stainless steel, tool steel, hollow sections and full materials
· Extremely solid and robust structure
· Cutting range from 0° - 60° on the right, Cutting range from 0° - 45° on the left
· Precise and robust belt guiding with adjustable guiding
· automatically adjustable saw belt tension
· When lifting the saw arm, the lowering cylinder automatically locks in the top position - an additional locking on the cylinder is not required
· Monitoring of the saw belt tension electromechanic via microswitch
· With coolant system on the saw belt guidings
· The torque of the motor is double transmitted
· Motor equipped with overload protection
· With length measuring stop as standard
· With cleaning brush for a optimum cleaning and maintenance of the saw belt
|
| |
| |
|
Scope of delivery:·
· Saw belt
· Operating tool
· Length stop 1 meter
|
| |
 |
| |
.jpg) |
| |
| Modell |
BMBS 250 x 315 H-DG |
| Artikel-Nr. |
368 0007 |
| |
| |
| Technische Daten |
| Motorleistung 400 V /50 Hz |
0,75 / 1,1 kW |
| Geschwindigkeitsstufen |
2 |
| Sägebandgeschwindigkeiten |
37/74 m/min. |
| Sägebandabmessungen |
2825 x 27 0,9 mm |
| Stellfläche (LxBxH) |
1550 x 750 x 1870 mm |
| Tischhöhe Materialzufuhr |
970 mm |
| Gewicht |
380 |
| max. Vorschublänge bei 1x Vorschub |
- |
| min. Restwerkstücklänge CNC-Betrieb |
- |
| min.Restwerkstücklänge man.Betrieb |
- |
| Schnittkapazitäten |
|
| 0° - Rundrohrmaterial |
250 mm |
| 0° Rundrohr-Vollmaterial |
150 mm |
| 0° - Vierkantmaterial liegend |
290 x 200 mm |
| 0° - Vierkantmaterial stehend |
290 x 200 mm |
| -45° - Rundrohrmaterial |
190 mm |
| -45° - Rundrohr-Vollmaterial |
110 mm |
| -45° - Vierkantmaterial liegend |
190 x 140 mm |
| -45° - Vierkantmaterial stehend |
180 x 200 mm |
| -60° - Rundrohrmaterial |
120 mm |
| -60° - Rundrohr-Vollmaterial |
80 mm |
| -60° - Vierkantmaterial liegend |
120 x 140 mm |
| -60° - Vierkantmaterial stehend |
120 x 140 mm |
| +45° - Rundrohrmaterial |
170 mm |
| +45° - Rundrohr-Vollmaterial |
110 mm |
| +45° - Vierkantmaterial liegend |
200 x 70 mm |
| +45° - Vierkantmaterial stehend |
110 x 200 mm |
| Bündelgröße - Rundrohrmaterial |
X |
| Bündelgröße - Rundrohr-Vollmaterial |
X |
| Bündelgröße - Vierkantmaterial liegend |
200 x 120 mm |
| Bündelgröße - Vierkantmaterial stehend |
200 x 120 mm |
|
|
|
| |
| |
| |
| |
