Bernardo mechanics' lathe Standard 360 V


7.389,34 EURplus tax excl. Shipping costs



Product No.:
03-1269XL
Shippingtime:
Weight per unit:
575 kg

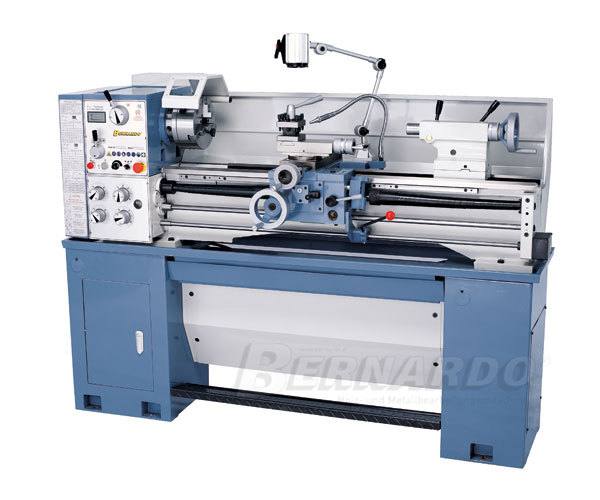

Bernardo mechanics' lathe Standard 360 V



The Standard 360 V mechanics' lathe is a state of the art machine. The high user-friendliness makes this model popular for training purposes and schools. Additionally this model is equipped with a variable speed adjustment for ideal setting of the cutting speed.



Distance between center

1000 mm

Center height

180 mm

Swing over bed

360 mm

Swing over gap

480 mm

Swing over cross slide

200 mm

Bed width

185 mm

Spindle bore

51 mm

Spindle nose

DIN 55029, D1-5

Speed range

70 - 2000 rpm, stepless

Longitudinal feed

(16) 0,078 - 1,044 mm/rev.

Cross feed

(16) 0,022 - 0,298 mm/rev.

Metric thread

(32) 0,45 - 10 mm

Inch thread

(20) 2 ¼ - 40 threads/1"

Travel of tailstock sleeve

120 mm

Taper of tailstock sleeve

MT 4

Motor power output S1 100%

1,5 kW (400 V)

Motor power input S6 40%

2,2 kW (400 V)

Machine dimensions (W x D x H)

1910 x 730 x 1500 mm

Weight approx.

575 kg

  • Compact but solid machine with leadscrew and feed rod
  • Grey cast-iron machine bed, inductive hardened and precisely polished
  • Wide range of applications - training workshops, tool shops, production etc.
  • This model comes with frequency converter for variable speed setting
  • Bridge can be removed to machine workpieces with large diameter
  • Electro-mechanic foot brake clearly reduces downtime
  • Clearly arranged, user-friendly speed and feed adjustment
  • One-hand clamping for tailstock, adjustable for taper turning
  • Hardened and polished gears and shafts in gear head
  • High spindle concentricity (≤ 0,009 mm)
  • Hardened and polished spindle runs in oil bath
  • 51 mm spindle bore to machine large shaft diameters comes standard



Standard accessories:

  • 3-jaw chuck DK11-200 mm / D5
  • Independent chuck K72-200 mm / D5
  • Steady rest - Passage up to 55 mm
  • Follow rest - Passage up to 50 mm
  • Face plate 255 mm
  • 4-way tool post holder
  • Coolant device
  • Spindle brake
  • Frequency inverer
  • Initial filling with Shell Tellus 46
  • Extractable chip tray
  • Thread dial
  • Halogen light
  • Morse taper drill sleeve
  • Change gears
  • 2 dead center
  • Chip tray
  • Splash guard
  • Stand
  • Tools



Optional accessories:

  • Bernardo Standard-4-jaw chuck DK12-D, DIN 55029, DK12-200/D5, cast iron (Art.Nr.:21-0834)
  • Soft solid jaws DSJ-DK11-200 (Art.Nr.:21-0854)
  • Soft solid jaws DSJ-DK12-200 (Art.Nr.:21-0867)
  • Soft top jaws DSTJ-DK11-200 (ARt.Nr.:21-0878)
  • Hard reversible top jaws DTJ-DK11-200 (Art.Nr.:21-0922)
  • Flange FL according DIN 55029, 200 / D5 semi machined, cast iron (Art.Nr.:21-4056)
  • Economy live center Typ PC - MT 4 (Art.Nr.:22-1003)
  • Medium duty live center with 7 interchangable tips SMA - MT 4 (Art.Nr.:22-1042)
  • Ball nose live center MT 4 / 125 mm (Art.Nr.:22-1060)
  • 6 station revolving tailstock turret MT 4 (Art.Nr.:22-1072)
  • Inserts for tailstock MT 4 (Art.Nr.:22-1077)
  • 5C fixture (ARt.Nr.:22-1090)
  • 5C round hole collets set, 3 - 26 mm, 24 pcs. (Art.Nr.:22-1097)
  • 40 pos. tool post & holder set System Multifix size E, incl. 4 tips (Art.Nr.:23-1001)
  • Costs of assembly for quick change set ** (Art.Nr.:23-1092)
  • Keyless drill chuck 1 - 16 mm / B 16 (Art.Nr.:24-1082)
  • 12 pcs. set metric size center drills (Art.Nr.:41-1070)
  • HSS-turning tool set, 16 mm, 8 pcs. (Art.Nr.:44-1026)
  • Indexable carbide turning tool set, 16 mm, 5 pcs. (Art.Nr.:44-2022)
  • 4 pcs. turning tools set incl. 1 pc. boring bar, 16 mm (Art.Nr.:44-2032)
  • 6 pcs. turning tools set incl. 1 pc. boring bar, 16 mm (Art.Nr.:44-2053)
  • Multipurpose turning tool set, 16 mm, 7 pcs., Tin-coated, set D (Art.Nr.:44-3086)
  • Machine mount MS 80 (Art.Nr.:53-2000)
  • Bernardo coolant fluid TURN for lathes, 5 l canister (Art.Nr.:54-1202)
