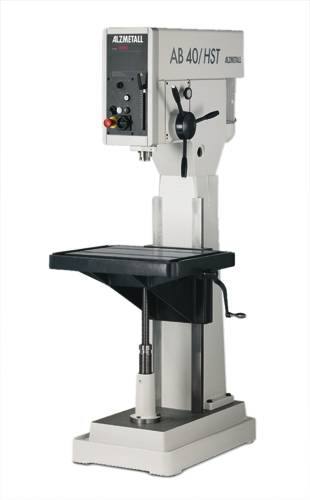

Semi Box Column Drilling Machine AB 40/HST Gear

Product No.:
AB 40 HS Getriebe
Shipping time:
No longer available
Availability:
0
Print data sheet
Print
Wishlist

16.439,71 EUR
plus. 19 % Tax excl. Shipping costs
- +





AB Series

Trendsetters for high performance drilling. Unmatched and highly precise.

Semi Box Column Drilling Machine AB 40/HST Gear


Drilling Performance in Steel E 335 St 60 40 mm
Drilling Performance in Cast-iron EN-GJL-200 46 mm
Drilling Capacity in Steel E 335 St 60 50 mm

Tapping Performance
in Steel E 335 St 60 M 30
in Cast-iron EN-GJL-200 M 36

Tool Taper (short spindle) MT 4
Distance Spindle to Column 330 mm
Table Clamping Area 742 x 460 mm
T-Slots, number x width x distance 2 x 14 x 224 mm
Distance spindle/table min./max. 266/928 mm
Box Column Dimension (w x d) 290 x 325 mm
Z-Travel of Spindle 160 mm
Feeds 0,1-0,2-0,3-0,4 mm/U
Net weight approx. 760 kg
Drive System infinitely variable
Motor 750 / 1500 Rpm
Performance 1,8 / 2,9 kW
Spindle Rpm range: 70-4000 with gear

Standard Equipment:

    Electro-magnetic feed clutch with Electrical Cross Handle Switches
    Control and light transformer 24 V
    Main Switch (lockable) with Overload Circuit-Breaker
    Feed Overload Clutch
    Self-Locking Mushroom Button for EMERGENCY OFF switch
    Infinitely variable speed drive
    Digital RPM Read-out
    Protection Class IP 54
    Spindle protection electrically secured
    Machine oil
    Motor Protection Class ‘’F’’ (155 degr. C)
    Lacquer: DD-structured grey RAL 7035, anthracite RAL 7016, alu RAL 9006

Options:

10. Spindle Reverse switch for Anti-clockwise rotation with 0-position (not with pos. 20.0 + 20.1)

12. Haloflex Machine Light, adjustable (Halogen 12 V/IP 64)

20.0 Tapping Attachment, (automatic reverse) w/o foot switch,
max. 6 tapped holes per minute (tapping capacity depending on Rpm speed)

20.1 Tapping Attachment, (automatic reverse) with additional foot switch,
max. 6 tapped holes per minute (tapping capacity depending on Rpm speed)

25. Coolant Attachment B separate container (33 l),
with overload-protected pump and accessories

37.1 Digital Depth Read-Out 0-fixation (drill start), 5 position LED-Display, characters 13 mm high

37.3 Automatic Drill Depth Control with: Simple Drill Depth programming,
interval drilling and free cutting possibility.
Settings by means of Digi-Pot, Digital Read-Out, includes Position 37.1

50.6 Precision Depth Adjuster and fixed stop, precision adjustment to 0,1 mm

08. Wooden Packing w x d x h 1200 x 800 x 2100 mm Verpackungsgewicht ca. 75 kg

*) net weight increases with 80 kg
