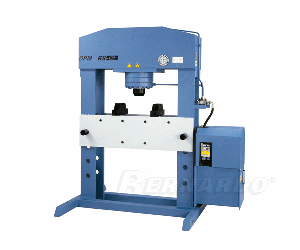

Bernardo DPM 1070-100 Hydraulische Werkstattpresse

Product No.:
DPM 1070-100
Shipping time:
3-4 days
Availability:
0
Print data sheet
Print
Wishlist

9.294,03 EUR
plus. 19 % Tax excl. Shipping costs
- +


Bernardo DPM 1070-100 Hydraulische Werkstattpresse

Bernardo DPM 1070-100 Hydraulische Werkstattpresse

Compression
100 to
Pass between column
1070 mm
Lobe lift
300 mm
Lobe diam.
220 mm
Pressure max.
263 bar
Table width
385 mm
Working height max.
810 mm
Flow speed
8 mm/sec.
Work speed
5 mm/sec.
Return speed
10 mm/sec.
Motor power
7,5 kW
Width
2160 mm
Depth
1400 mm
Height
2250 mm
Weight approx.
2000 kg
  • Serially equipped with a manoscope
  • Press table adjustable in height with adjustment bolt
  • For straightening, pressing, bending, mounting of cogwheels, disks etc.
  • High-quality hydraulic press for industrial use
  • Lobe can be stopped at any position
  • Robust steel-welding construction for continuous operation
  • High flow speed for rational working
  • Serially equipped with support prism for straigthening of arbors
  • Adjuster for adjustment in height of the table plate included in supply
  • High-quality hydraulic of European production

Standard accessories:
  • Support prism
  • Manoscope
  • Adjustable workbench
  • Overstress outlet
  • Operating manual
