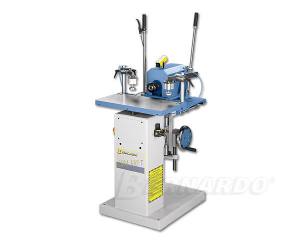

Bernardo LBM 300 T Mortiser

Bernardo LBM 300 T Mortiser

The topmodel of the LBM-series is equipped with a left and right turnable drill unit and is thereby the ideal solution for the stairs-, window- and storefront production. Due to the fact that the motor can be moved using one hand, big work pieces like doors can be machined easily. With the extensive optional equipment, the efficiency will be increased additionally.
Table size 600 x 320 mm
Height of table 915 mm
Transversal stroke 210 (145*) mm
Longitudinal stroke 225 mm
Vertical stroke 165 mm
Spindle speed 2840 rpm
Spindle group turnable 60° - 0° - 60°
Westcott-chuck 0 - 20 mm
Motor power 2,4 / 3,0 kW
Weight approx. 200 kg
* Traverse path of drill unit
  • Electrical equipment 400 V / 50 Hz
  • Optional with carriage for easy movement
  • Hand wheel for height adjustment with digital indication
  • Serially with 2 pneumatic clamping cylinder
  • Longitudinal and transversal stroke
  • Stopper 90°
  • Mitre fence with 22,5° and 45°
  • Linear-laser device with clamp, battery-powered
  • Drilling aggregate can be rotary to both sides (60° left / right)
  • Additional head movement of 145 mm
  • Westcott-chuck 0-20 mm
  • Motor protection
  • 4-size rotor group with fixed positions at 16-22-25-32 mm
