Bernardo table spindle moulder T 600 R 400 V

Product No.:
09-1257
Shipping time:
3-4 days
Availability:
0
Print data sheet
Print
Wishlist

1.203,25 EUR
plus. 19 % Tax excl. Shipping costs
- +

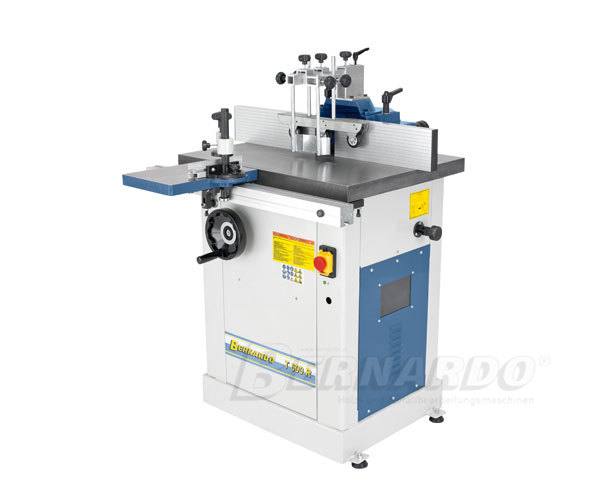

Bernardo table spindle moulder T 600 R 400 V


The T 600 R table spindle moulder comes complete with a roller table. This model is extremely popular among experienced amateurs.



Table size

700 x 560 mm

Table size with roller table

220 x 320 mm

Working height

870 mm

Spindle diameter

30 mm

Height adjustment of spindle

100 mm

Working lenght of spindle

80 mm

Max. tool diameter

200 mm

Max. tool diameter concealed

105 mm

Table opening

120 mm

Spindle speed

3500 / 7000 rpm

Dust extraction outlet

100 mm

Motor power output S1 100%

2,2 kW (3,0 HP)

Motor power input S6 40% 3,0 kW (4,0 HP)

Voltage

400 V

Machine dimension (W x D x H)

800 x 900 x 1200 mm

Weight approx.

196 kg



  • Roller table featuring mitre fence significantly raises user comfort
  • V-belt allows for quick and easy speed change
  • Robust construction ensures vibration-free run
  • Mitre fence with downholder is part of standard equipment
  • Solid moulder protective hood features anodized stop bars
  • Ergonomically arranged control elements and switches for high work comfort
  • Solid moulder unit features high-torque drive motor



Standard accessories:

  • Roller table
  • Downholder
  • Stop bar
  • Mitre fence
  • Protective and pressing device



Optional accessories:

  • Dust collector DC 230 E / 230 V with tube 2,5 m (Art.Nr.:12-2043)
  • Dust collector DC 230 E / 400 V with tube 2,5 m (Art.Nr.:12-2044)
  • Dust collector with cartridge filter DC 250 CF / 230 V (Art.Nr.:12-2085)
  • Tube diam. 100 mm (6 m) (Art.Nr.:12-1077)
  • Universal cutter head set 100 x 40 x 30 mm (Art.Nr.:16-2349)
