Scheppach Spindle moulder hf 3000ci 220-240 V/ 50 Hz

Product No.:
SP 7231 0910
Shipping time:
3-4 days
Availability:
0
Print data sheet
Print
Wishlist

2.563,77 EUR
plus. 19 % Tax excl. Shipping costs
- +

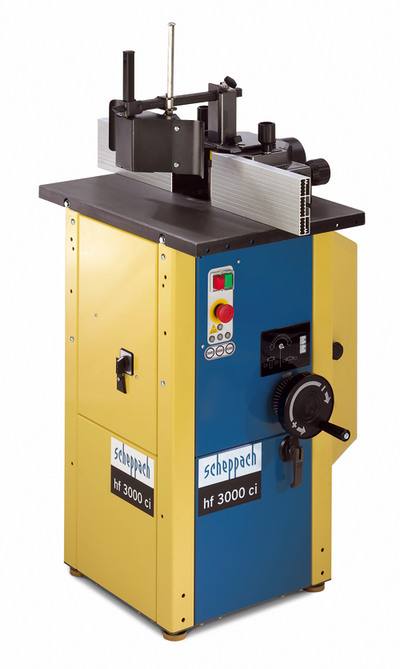

Spindle moulder hf 3000ci

He who has the choice, chooses precision – the vertical spindle moulder hf 3000ci.

The correct speed and the precisely set tool field an optimum moulding result without the need of refinishing work.

The scheppach hf 3000ci offers three different speeds; the speed set is shown on the electric rpm display. Precision is a matter of setting. The standard moulding fence, adjustable on both sides, can be set to the tenth of a millimetre. The precise adjustment of the moulding spindle is done by means of a hand wheel shown on a scale. A precision sliding table carriage with clamping device and tenoning attachment is offered as optional equipment. Using the corresponding profile cutters, the standard clockwise and anti-clockwise spindle rotation allows you to work the wood above the moulding tool. This is a safety feature, just as the standard motor brake.

Do not put a limit to your creativity.

Through new technical features and the sensitivity for new top-quality products from professional suppliers, in the course of the years we have acquired a vast accessory range unique in the field.

Thanks to a stop rail, sliding table carriage and table length extension, large-sized moulding jobs are no problem. For varying moulding settings, scheppach offers a set of table insert rings. Thanks to the attachment possibility, work at the hf 3000ci can also be facilitated with a power feed device.

Technical data

L/W/H mm

640/660/1,050

Table size mm

640 x 480

Table opening Ø mm

115/142

Spindle Ø mm

30

Spindle height adj. mm

100

Spindle speed rpm

3,000/6,000/9,000

Tool hole Ø mm

30

Max. tool Ø mm

200

Tool clamping height

100

Suction connector Ø mm

100

Weight approx. kg

120



Motor



220-240 V/
50 Hz

Input kW (HP)

2.8 (3.8)

Rpm

2,800

Order No.

7231 0910
