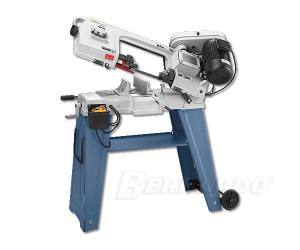

Bernardo EBS 115 metal bandsaw 400 Volt

Thousandfold approved bandsaw for vertical and horizontal cutting. Due to the multifunctional capabilities and the extreme attractive price-performance ratio is this model ideal for the hobbyist and professional do-it-yourselfer.



Cutting capacity round 90°	100 mm
Cutting capacity flat 90°	100 x 150 mm
Cutting capacity round 45°	76 mm
Cutting capacity flat 45°	76 x 115 mm
Working height	610 mm
Sawblade dimension	1638 x 13 x 0,65 mm
Cutting speeds	20 / 29 / 50 m/min
Motor power output S1 100%	0,37 kW
Motor power input S6 40%	0,55 kW
Voltage	400 V
Machine dimension (L x W x H)	895 x 400 x 950 mm
Weight approx.	62 kg



• Vise adjustable for mitre cuts (90° to 45°)
• Cutting pressure adustable to the workpiece
• For cutting of sheet metal also vertical useable
• 3 speeds adjustable by v-belt
• For cutting of profiles, tubes, full rivet material out of iron, wood
• Sawframe out of cast iron guarantee vibration-free run
• Carriage and transport handle for easy relocation



Standard accessories:

• Sawblade
• Quick clamping vice
• Material fence
• Supporting table for vertical cuts
• Automatic shut-down
