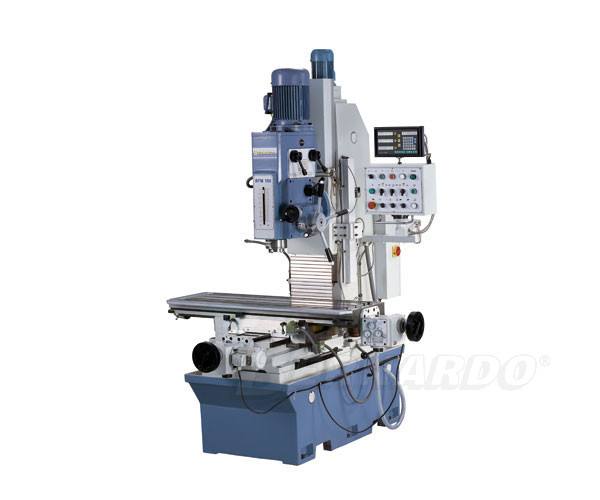

Bernardo BFM 180 bed milling machine

The massive bed milling machine BFM 180 is optimal useable for drilling, milling and countersink works useable. Due to the multifunctional applicatioins and the large standard accessories, this machine is optimal for mechnical workshops, repair shops, machine building,....



Table size	1220 x 360 mm
Spindle taper	ISO 40
Spindle speed vertical	(16) 94 - 2256 rpm
Spindle stroke	180 mm
Spindle feed	0,1 / 0,15 / 0,3 mm/rev.
Travel longitudinal (x)	620 mm
Travel cross (y)	370 mm
Travel vertical (z)	510 mm
Distance spindle to column	370 mm
Spindle head tilting range	-45° to +45°
Distance spindle / table	90 - 600 mm
Feeding range longitudinal / cross	(8) 24 - 720 mm/min
T-slot size	14 mm
Motor power	1,5 / 2,4 kW
Machine dimension (W x D x H)	1770 x 1800 x 2320 mm
Weight approx.	1400 kg

• Height ajdustment of the mill head with lifting motor via adjustable dovetail guiding
• Heightened Produktivity due to the serially digital readout
• Serially with automatical spindle feed of 0,1 / 0,15 / 0,3 mm/rev.
• Quick table adjustment in x- and y-axis trough automatical table feed with rapid feed
• High speed range from 94 - 2256 rpm
• Large accessories included at basic configuration
• Robust, heavy construction for precise work
• Milling: spindle feed via hand wheel
• Drilling: spindle feed via hand wheel
• Adjustment from rough manual feed to smooth manual feed via clutch



Standard accessories:

• Drill chuck with arbor
• Adapter ISO40/MT4, ISO 40/MT3, ISO 40/MT2
• Taper shell endmill holder ISO 40 / 32 mm
• Digital readout
• Coolant device
• Central lubrication
• Halogen lamp
• Lifting motor for mill head
