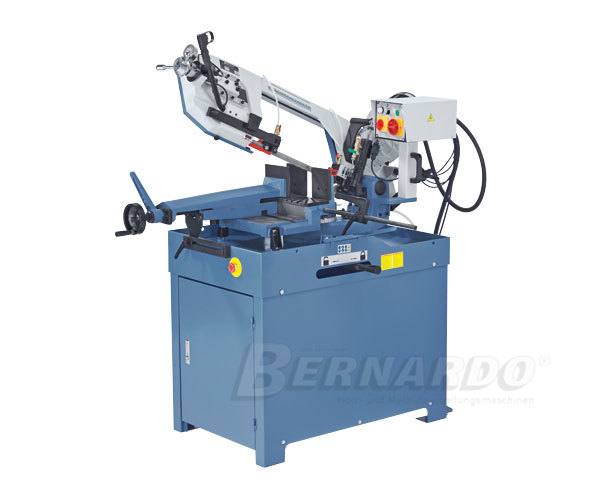

Bernardo double mitre band saw BS 310 DG

The BS 310 DG is a precise double mitre band saw designed for universal applications. Characteristics of this model include the tiltable saw arm for double mitre cuts from -45° to 60°, and the hydraulic cylinder for sensitive lowering of the saw arm via a regulating valve. The attractive price to benefit ratio makes this machine a reliable device for businesses that occasionally require sawing operations.





Cutting capacity round / square 90°	250 mm / 250 x 250 mm
Cutting capacity flat 90°	300 x 210 mm
Cutting capacity round / square 45° R	180 mm / 180 x 180 mm
Cutting capacity flat 45° R	200 x 140 mm
Cutting capacity round / square 45° L	150 mm / 150 x 150 mm
Cutting capacity flat 45° L	170 x 90 mm
Cutting capacity round / square 60° R	120 mm / 95 x 95 mm
Cutting capacity flat 60° R	120 x 95 mm
Working height	1020 mm
Sawblade dimension	2725 x 27 x 0,9 mm
Cutting speeds	36 / 72 m/min
Coolant pump	25 W
Motor power output S1 100%	0,75 / 1,5 kW
Motor power input S6 40%	1,1 kW / 2,2 kW
Voltage	400 V
Machine dimension (L x T x H)	1700 x 900 x 1900 mm
Weight approx.	335 kg



• Bandsaw blade guide with roller guide and carbide inserts for ideal blade run
• Choice of 2 speed settings (36/ 72 m/min) ensures optimal results
• Torsion-free, rigid saw arm, spheroidal cast iron construction
• Robust, grey cast-iron vice with workpiece fence, ideal for repetitive cuts
• Hydraulic cylinder allows stepless adjustment of lowering
• Complete with manometer for regular checking of blade tension
• Solidly constructed to ensure smooth run free from vibrations
• Gear unit features hardened and polished work gear and bronze worm wheel
• Automatic shut-down at cutting end
• Tiltable saw arm for double mitre cuts to left (-45°) and right (+60°)
• Complete with machine base and coolant device





Standard accessories:

• Bandsaw blade
• Material fence
• Stand
• Manometer for blade tension
• Quick clamping vice
• Coolant device
• Hydraulic cylinder
• Motor protective switch
• Automatische blade break control
• Automatic shut-down





Optional accessories:

• Bandsaw blade BiFlex 2450 x 27 x 0,9 - Vario 6/10 TpI (Art.Nr.:47-1038)
• Roller table RB 4 - 1000 (Art.Nr.:07-1461)
• Roller table RB 7 - 2000 (Art.Nr.:07-1462)
• Roller table RB 10 - 3000 (Art.Nr.:07-1463XL)
• Roller table RB 1000 A  with fence (Art.Nr.:07-1505)
• Roller table RB 2000 A  with fence (Art.Nr.:07-1510)
• Roller table RB 3000 A  with fence (Art.Nr.:07-1515XL)
• Measurement system LS 1 for RB 4 - 1000 (Art.Nr.:07-1466)
• Measurement system LS 2 for RB 7 - 2000 (Art.Nr.:07-1467)
• Measurement system LS 3 for RB 10 - 3000 (Art.Nr.:07-1468XL)
• PVC - rolls set for RB 4 / 7 / 10 / 13 (3 pcs.) * (Art.Nr.:07-1465)
• Bernardo Cutting fluid CUT, 1:30 dilutable, 5 l canister (Art.Nr.:54-1201)
