Bernardo Proficenter 450 V

Product No.:
03-1220
9009468001582
Shipping time:
3-4 days
Availability:
-8
Print data sheet
Print
Wishlist

1.980,56 EUR
plus. 19 % Tax excl. Shipping costs
- +

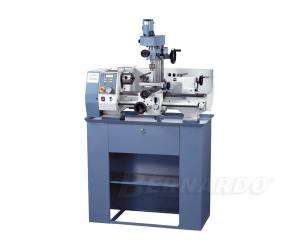

Bernardo Proficenter 450 V.



The machining centre Proficenter 450 V is serially equipped with a tiltable mill head. Due to the compact construction features this machine a high smoothness and guarantee precise work


Turning lathe



Distance between centers

450 mm

Center height

105 mm

Swing over bed

210 mm

Spindle bore

20 mm

Taper at spindle bore

MT 3

Speed range, stepless

100 - 2000 rpm

Longitudinal feed

0,045 / 0,126 mm/rev.

Metric thread

(17) 0,25 - 3 mm

Inch thread

(13) 8 - 56 Gg/1"

Travel of tailstock sleeve

45 mm

Taper of tailstock sleeve

MT 2

Motor power output S1 100%

1,0 kW / 230 V

Motor power input S6 40% 1,35 kW / 230 V

Milling attachment



Drill capacity in steel

10 mm

End mill capacity max.

20 mm

Distance spindle to column

170 mm

Spindle speed, stepless

100 - 2000 rpm

Spindle taper

MT 2

Mill head tiltalbe

-30° to +45°

Mill head height adjustable

140 mm

Motor power output S1 100%

0,15 kW / 230 V

Motor power input S6 40% 0,20 kW / 230 V

Machine dimension (W x D x H) 1010 x 640 x 850 mm

Weight approx.

150 kg

  • Direct current motor for ideal torque in the lower areas of speed
  • User friendly handling via plastic foil keyboard
  • Serially with automatic longitudinal and cross feed
  • Serially with left and right turning of the mill spindle
  • Serially with stepless speed adjustment and digital speed indication
  • Mill head tiltable from -30° to +45°
  • Tailstock can be displaced for taper turning
  • Solid machine bed with inductive hardened and grinded guideways
  • Guideways adjustable via gibs
  • High true running accuracy due to precision bearings
  • Mill spindle with precise fine adjustment

Standard accessories:

  • 3-jaw chuck 100 mm
  • 4-way tool post holder
  • Chuck guard
  • Change gears
  • Centre points
  • Digital speed indication

Further optional accessories:

  • Follow rest
  • Steady rest
  • Stand
