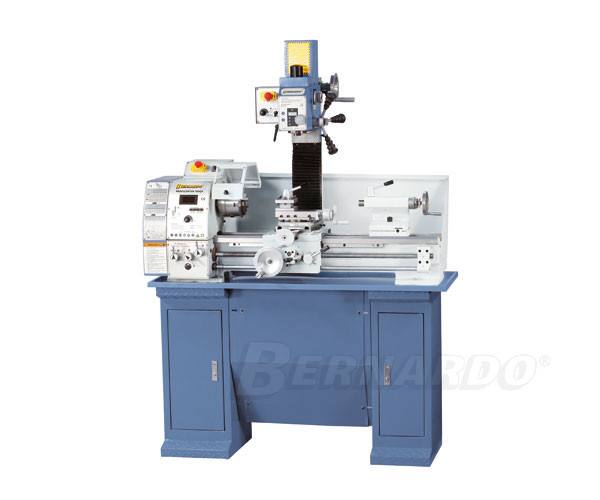

Bernardo Proficenter 700 QV. |
|
Our top model Proficenter 700 WV leaves nothing left to desire for precision mechanics, workshops etc Drilling, milling and turning within narrow space, serially equipped with a digital display for drilling depth and speed range for comfortable working as well as a big spindle drill, all combined in one machine. Additional this machine is equipped with a cross feed.
Turning lathe
|
|
Distance between centers
|
700 mm
|
Center height
|
140 mm
|
Swing over bed
|
280 mm
|
Spindle bore
|
26 mm
|
Speed range, stepless
|
50 - 1800 rpm
|
Longitudinal feed
|
(14) 0,07 - 0,65 mm/rev.
|
Metric thread
|
(18) 0,2 - 3,5 mm
|
Inch thread
|
(21) 8 - 56 Gg/1“
|
Taper of tailstock sleeve
|
MT 2
|
Motor power output S1 100%
|
1,0 kW / 230 V
|
Motor power input S6 40% |
1,35 kW / 230 V |
Milling attachment
|
|
Drill capacity max.
|
16 mm
|
End mill capacity max.
|
20 mm
|
Distance spindle to column
|
170 mm
|
Spindle speed
|
50 - 2250 rpm
|
Spindle taper
|
MT 2
|
Mill head tiltable
|
-90° - 0° - +90°
|
Mill head height adjustmable
|
275 mm
|
Motor power output S1 100%
|
0,60 kW / 230 V
|
Motor power input S6 40% |
0,95 kW / 230 V |
Machine dimension (B x T x H) |
1390 x 640 x 1025 mm |
Total weight approx.
|
240 kg
|
- Serially equipped with 26 mm spindle drill
- Eletronic, stepless speed range, therefore an optimal adjustment to the workpiece is possible
- Serially with feed rod for automatic longitudinal and cross feed
- Prism bed inductive hardened and grinded
- Manufactured according to the strict regulations of DIN-standard
- Extended area of application due to tiltable mill head
- Mill head with digital display for spindle stroke
- Top slide relocatable in the x-axis
- Serially equipped with left and right turning of the milling spindle
Standard accessories:
- 3-jaw chuck 125 mm
- Flange 125 mm
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 2 / B 16
- Steady centre
- Change gears
- 4-way tool post holder
- Cross slide with upper support
- Milling table
- Chuck guard
- Splash guard
- Tools
|
|
|
|
