» » » Bernardo cycle lathe CHL 2180 - 530 x 1845
Bernardo cycle lathe CHL 2180 - 530 x 1845
|

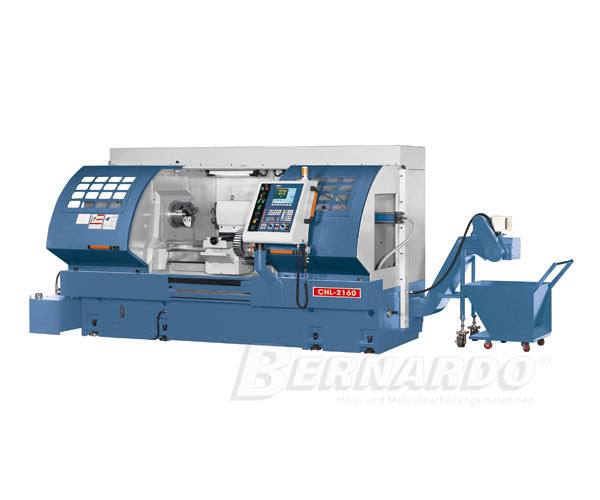

The CHL cycle lathes are suitable models for medium to heavy turning works and were specifically designed for the economic production of single parts and small series at best possible accuracy.
Distance between centers
|
1845 mm
|
Center height
|
265 mm
|
Swing over bed
|
533 mm
|
Swing over cross slide
|
305 mm
|
Bed width
|
345 mm
|
Spindle bore
|
80 mm
|
Spindle nose fixture |
D1-8 (opt. A2-8)
|
Speed range
|
20 - 60 / 61 - 200 / 201- 670 / 671 - 2000 rpm
|
Travel x-axis
|
300 mm
|
Travel z-axis
|
1720 mm
|
Rapid feed x- / z-Axis
|
7,5 / 10 m/min.
|
Diameter of tailstock sleeve
|
85 mm
|
Travel of tailstock sleeve
|
178 mm
|
Taper of tailstock sleeve
|
MT 5
|
Motor power input S1 100%
|
11,0 kW
|
Motor power input S6 40%
|
15,0 kW
|
Weight approx.
|
4800 kg
|
- Wide cross slide allows mounting of various tool post holders
- Solid tailstock features oversize throat - ideal when using automatic 8-station turret
- Stepless speed range via 4 adjustable speed settings, adjustment via M-code
- High rapid traverse allows significant reduction of downtime
- Brushless AC-motor drive and feed drive
- Hardened, polished, high-quality ball screws in x- and z-axis guarantee best possible accuracy
- User-friendly, logical Fagor 8055 TC control
- Solid headstock features precisely bedded main spindle (spindle bore 80 mm)
- Powerful motor with high speed even at low torque
- Turning of complicated shapes possible with programmed cycles
Standard accessories:
- Cycle control Fagor 8055 TC
- Coolant device
- 4-way tool post holder
- Machine light
- Live center MT 5
- Tiltable control panel
- Automatic lubrication of spindle head
- Automatic lubrication of longitudinal and cross slide
- 2 electronic handwheels
- Serial interface RS 232
- Machine enclosure
- Tools
Optional accessories:
- Bernardo Precision 3-jaw chuck PO3-D according DIN 55029 PO3-315/D8, steel (Art.Nr.:21-1047F)
- 3-jaw hollow hydraulic chuck & pump diam. 250 mm *
- 3-jaw hollow hydraulic chuck & pump diam. 300 mm *
- Electric turret H4 *
- Turret V8 *
- Tailstock shaft driven by hydraulic *
- Tailstock 2 steps speed *
- Steady rest diam. 16 - 180 mm *
- Follow rest diam. 150 - 300 mm *
- Follow rest diam. 16 - 130 mm *
- Chip conveyor
|
|
