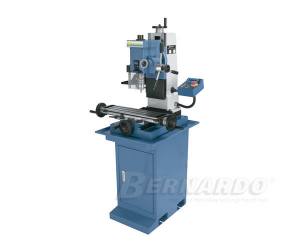

The BF 20 Super drilling and milling machine
comes complete with a digital speed and spindle stroke display as a standard feature. Furthermore this model is equipped with a left and right rotation for thread cutting.
|
Drilling capacity in steel
|
16 mm
|
|
Face mill capacity max.
|
30 mm
|
|
End mill capacity max.
|
16 mm
|
|
Threat cutting max.
|
M 10
|
|
Distance spindle to column
|
160 mm
|
|
Distance spindle / table
|
90 - 330 mm
|
|
Spindle stroke
|
58 mm
|
|
Spindle speed, stepless
|
50 - 2500 rpm
|
|
Spindle taper
|
MT 2
|
|
Table size / T-slot size
|
500 x 130 mm / 8 mm
|
|
Travel (x / y)
|
240 / 155 mm
|
|
Mill head tiltable
|
-45° to +45°
|
|
Height adjustment mill head
|
240 mm
|
|
Motor power output S1 100%
|
0,50 kW / 230 V
|
|
Motor power input S6 40%
|
0,75 kW / 230 V
|
|
Machine dimensions (W x D x H)*
|
750 x 640 x 800 mm
|
|
Weight approx.
|
130 kg
|
* without stand
- Large application range: thread cutting, end milling, horizontal slotting etc.
- Direct current drive allows optimal torque at low speed range
- Mill head tilts both sides for milling at angles
- Handle allows spindle adjustment, hand wheel allows fine feed
- Surface treated cross table with T-slots
- Maintenance-free dovetail guiding, adjustable via gibs
- Precisely bedded spindle guarantees high centricity (≤ 0,015 mm)
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 2 / B 16
- Drawbar M 10
- Digital speed indicator
- Digital spindle stroke indicator
- Tool tray
- Tools
Optional accessories:
- Mill chuck set OZ, MT 2, 4 - 16 mm, 9 pcs. (Art.Nr.:18-1006)
- Mill chuck set ER 25, MT 2, 4 - 16 mm, 8 pcs. (Art.Nr.:26-1002)
- Mill chuck set ER 32, MT 2, 3 - 25 mm, 16 pcs. (Art.Nr.:26-1005)
- Aut. reversibla tapping chuck set SUPER M 5 - M 12 (Art.Nr.:24-1096)
- Boring head combo package diam. 50 mm with arbor MT 2, incl. boring bars (Art.Nr.:25-1014)
- Taper shell end mill holder MT 2 - 22 mm (Art.Nr.:26-1042)
- Horizontal & vertical rotary table HV 4 set (Art.Nr.:27-1025)
- Horizontal & vertical rotary table RT 4 L - 100 mm (Art.Nr.:27-1031)
- Clamping kit set 24 pcs., 8 mm, M 6 (Art.Nr.:28-1012)
- Precision machine vise PS 100 (Art.Nr.:28-2027)
- 2 way precision tilting vise PTS 50 (Art.Nr.:28-2031)
- Quick clamping vise SP 80 (Art.Nr.:28-2046)
- Opening wider machine vise FJ 100 (Art.Nr.:28-2085)
- Edge finder with indicator lamp MT 2 / L 160 (Art.Nr.:32-1062)
- Edge finder set 5 pcs. (Art.Nr.:32-1067)
- 1-axis digital readout system POSITRON P2 - 600 mm (for self installation) (Art.Nr.:37-1050)
- 12 pcs. TiN-coated end mills, 3 - 12 mm (Art.Nr.:42-1019)
- 20 pcs. HSS TiN-coated end mills, 3 - 12 mm (Art.Nr.:42-1020)
- Indexable carbide end mill 16 mm, MT 2 (Art.Nr.:42-1025)
- Carbide tips (1 pcs.) for 42-1025 (Art.Nr.:42-1027)
- High performance 90° facing square shoulder cutter diam. 50 mm (Art.Nr.:42-2051)
- Stand BF 5 (Art.Nr.:56-1026)
|
