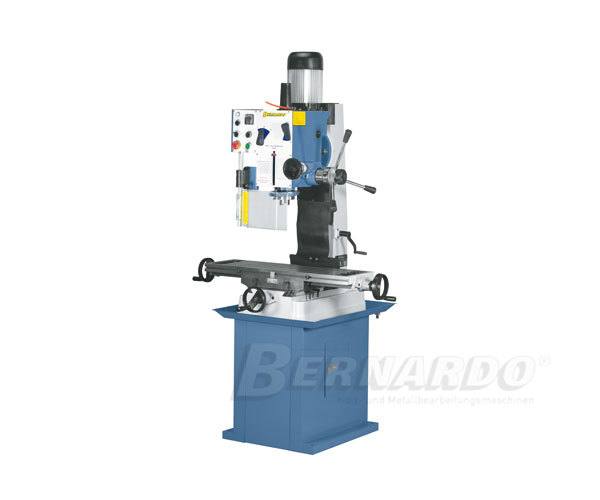

The FM 45 drilling and milling machine
is suitable for drilling and milling in horizontal, vertical and inclined position. The FM 45 additionally features a gear head with dovetail guiding, ensuring accuracy and rigidity. The solid construction and the extraordinary performance make this model popular among model makers, amateurs and repair shops.
Drill capacity in steel
|
32 mm
|
Drill capacity on cast iron
|
40 mm
|
Distance spindle to column
|
260 mm
|
Spindle speed
|
(12) 50 - 2520 rpm
|
Spindle taper
|
MT 4
|
Spindle stroke
|
130 mm
|
Table size
|
820 x 240 mm
|
Travel (x / y)
|
560 / 190 mm
|
Mill head tiltable
|
-90° to +90°
|
Distance spindle to table
|
40 - 440 mm
|
Height adjustment of mill head
|
400 mm
|
T-slot size
|
14 mm
|
Column diameter
|
-
|
Motor power output S1 100%
|
0,85 / 1,1 kW (400 V)
|
Motor power input S6 40%
|
1,1 / 1,5 kW (400 V)
|
Machine dimensions (L x D x H)*
|
1170 x 850 x 1450 mm
|
Weight approx.
|
282 kg
|
* without stand
- Large, solid cross table, precisely manufactured surface
- High concentricity due to taper roller bearing
- Dovetail guiding of the gear head
- Heavy and solid cast iron construction
- Wide range of applications
- Cross table features adjustable gibs
- Polished gears, in oil bath, guarantee smooth running
- Wide speed range 50 - 2520 rpm (12 steps)
- Left and right rotation for tapping
- Gear head tilts 180º
- Handwheel for spindle feed when milling
- Star handle for spindle feed when drilling
- Use clutch to change from manual feed to fine feed
Standard accessories:
- Drawbar
- Drill chuck 3 - 16 mm
- Morse taper drill sleeve
- Milling head 80 mm
- Protective cover
- Thread cutting device
- Tools
Optional accessories:
- Double roller tapping chuck set MT 4, M 3 - M 12 (Art.Nr.:24-1091)
- Boring head combo package diam. 75 mm, incl. boring bars (Art.Nr.:25-1020)
- Mill chuck set ER, MT 4, 3 - 25 mm, 16 pcs. (Art.Nr.:26-1007)
- Horizontal & vertical rotary table HV 8 - 200 mm (Art.Nr.:27-1001)
- Semi-universal dividing head BS-0 (Art.Nr.:27-1045)
- Deluxe clamping kit set 52 pcs., 14 mm, M 12 (Art.Nr.:28-1001)
- 2 way precision tilting vise PTS 100 (Art.Nr.:28-2033)
- Universal machine vise UMS 100 (Art.Nr.:28-2043)
- Machine vise KV 125 (Art.Nr.:28-2081)
- Opening wider machine vise FJ 125 (Art.Nr.:28-2086)
- Edge finder diam. 10 mm / 10 mm (Art.Nr.:32-1065)
- Centering indicator (Art.Nr.:32-1070)
- 3-D-Universal tester (Art.Nr.:32-1080)
- 10 pcs. TiN-coated roughing end mills, 6 - 25 mm (Art.Nr.:42-1016)
- 20 pcs. HSS TiN-coated end mills, 3 - 12 mm (Art.Nr.:42-1020)
- 75° face milling cutter diam. 80 mm (Art.Nr.:42-1085)
- Taper shell end mill holder MT 4 - 27 mm (Art.Nr.:26-1049)
- Coolant pump 11 l - 400 V (for self installment) (Art.Nr.:51-1000)
- Power feed AL 200 S for x-axis with trafo (Art.Nr.:53-1005)
- Stand BF 3 with chip tray (Art.Nr.:56-1015)
- Stand BF 6 with coolant tray (Art.Nr.:56-1016)
|
