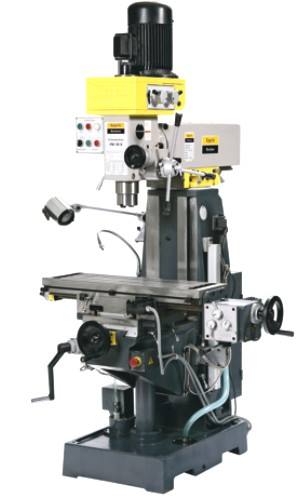

Epple MILLING AND DRILLING MACHINE FM 50 S

» drill depth stop
» easy operating safety switch with low MACHINE WITH TABLE FEED, COOLANT voltage release and emergency stopSYSTEM AND HALOGEN WORKING LIGHT.
» massive exact cross table, large dimensioned with precise surface finishing
» cross table 45° to left and the right pivotable dovetail slideway, dovetail slideway in all 3 axes, hand-
» forward and reverse for threading scraped, providing highest stability and precision.
» automatic feed for the x-axis as standard (8 speeds)
» cooling liquid facility
» quenched gearwheels immersed running in oil
» halogen working light
» hollow spindle for tool clamping via M 16 drawbar
» gear head rotation +/ - 90°
» fine spindle crossfeed sleeve when milling
» FM 50 S DIGI: digital readout (LED)
» large speed range: 4 speeds by position + travel measurement gear shaft plus 2 motor speeds
» high accurate spindle running due to taper roller bearings
» mechanical spindle feed for drilling via cross lever
» drive coupling for shifting between rough and fine feed
