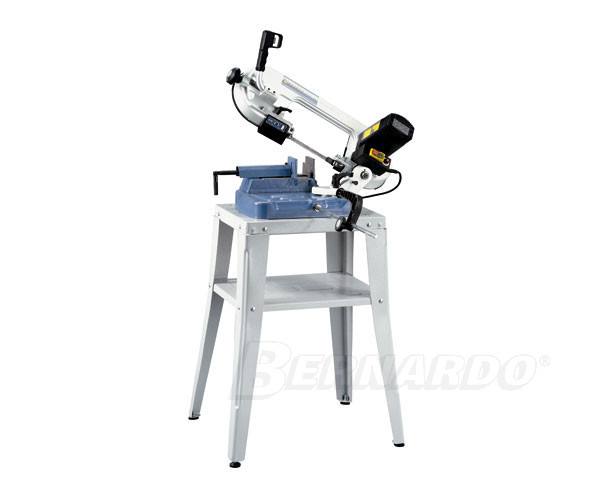

Bernardo Vario 105 mobile bandsaw

The metal bandsaws of the Vario-series are available with a cutting capacity of 85 / 105 or 150 mm. Due to the stepless adjustable cutting speed and the low weight are these machines optimal for the repair and construction site use.



Cutting capacity round 90°	105 mm
Cutting capacity flat 90°	90 x 125 mm
Cutting capacity round 45°	80 mm
Cutting capacity flat 45°	80 x 82 mm
Sawblade dimension	1440 x 13 x 0,65 mm
Cutting speed, stepless	30 - 72 m/min
Motor power	1,25 kW
Voltage	230 V
Machine dimension (L x W x H)	730 x 310 x 390 mm
Weight approx.	18 kg



• Stepless adjustable cutting speed for optimal adjustment to the work piece
• Adjustable cutting angle for mitre cuts from 90° to 45°
• Including material fence for rational work
• Optimal cutting results due to ball bedded sawblade guiding
• At force, the engine electronics keeps the cutting speed constant
• Enviroment-friendly, as the use of lubrication and coolant is not applicable
• Smooth, vibration-free run for optimal cutting results
• Machine body and sawframe out of high-class aluminium die casting
• Ideal for construction site use due to the low weight



Standard accessories:

• Sablade
• Material fence
• Ergonomic handle
• Stepless cutting speed
