» » » Bernardo semi-automatic bandsaw MSB 350 H

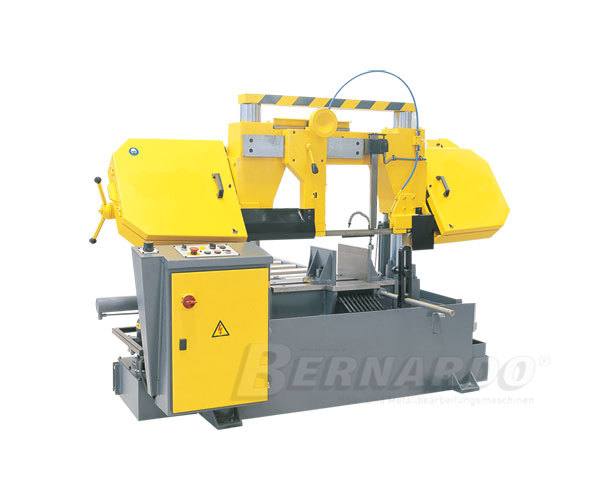

Bernardo semi-automatic bandsaw MSB 350 H
|
|
This series of semi-automatic bandsaws features a wide range of cutting capacities, making these models ideal for various applications. The semi-automatic function allows quick and easy operating.
Cutting capacity round 90°
|
350 mm
|
Cutting capacity square 90°
|
350 x 350 mm
|
Cutting capacity flat 90°
|
520 x 350 mm
|
Cutting capacity round 45°
|
270 mm
|
Cutting capacity square 45°
|
270 x 270 mm
|
Cutting capacity flat 45°
|
270 x 350 mm
|
Working height
|
625 mm
|
Cutting speed, stepless
|
20 - 100 m/min
|
Bandsaw blade dimensions
|
5000 x 34 x 1,1 mm
|
Coolant pump
|
120 W
|
Motor power
|
2,2 kW
|
Machine dimensions (L x D x H)
|
2700 x 1100 x 1650 m
|
Weight approx.
|
1300 kg
|
- Automatic, height adjustable lifting of the saw frame when cutting is complete
- Vice tilts from 90° up to 45° for mitre cutting
- Increased stability due to precisely polished double column guide for parallel cuts
- Automatic blade break control stops the machine if blade breaks
- Teflon-coated guide of saw frame on polished columns
- Automatic shut-down at cutting end
- Stepless speed change to allow precise adjustment to each workpiece
- Serial roller table for operating with long workpieces
- Bandsaw blade guiding features ball bearings and carbide tips
- Optimal power transmission to the blade wheel due to the robust gear unit
Standard accessories:
- Bandsaw blade
- Material fence
- Manometer for blade tension
- Quick clamping vice
- Coolant device
- Hydraulic cylinder
- Motor protective switch
- Automatic blade break control
- Automatic shut-down
- Roller table
Optional accessories:
- Bandsaw blade BiFlex 5000 x 34 x 1,1 - Vario 4/6 TpI (Art.Nr.:47-1290)
- Turn table (Art.Nr.:04-1443)
- Hydraulic top clamping (Art.Nr.:04-1447)
- Hydraulic vice (Art.Nr.:04-1452)
- Micro cooling system (Art.Nr.:04-1456)
- Bernardo Cutting fluid CUT, 1:30 dilutable, 5 l canister (Art.Nr.:54-1201)
|
|
|
|
|
|
|
