Bernardo drilling machine TB 20 T - 400 V

Product No.:
01-1041
Shipping time:
3-4 days
Availability:
0
Print data sheet
Print
Wishlist

386,10 EUR
plus. 19 % Tax excl. Shipping costs
- +

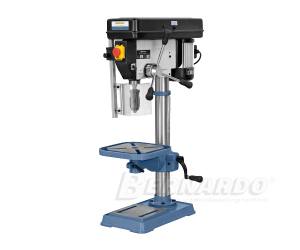

Bernardo drilling machine TB 20 T - 400 V



The TB 20 T is a cost efficient table drilling machine with V-belt drive available with 230 V or 400 V. The 400 V model comes complete with right and left turning device. The attractive price to performance ratio makes this model the ideal solution for amateurs and training purposes.



Drilling capacity max.

20 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 2

Spindle speed

(16) 180 - 2770 rpm

Distance spindle to column

180 mm

Drilling table tiltable

-45° to 45°

Distance spindle to table max.

415 mm

Distance spindle to base

605 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

290 x 290 mm / 16 mm

Work surface base

205 x 205 mm

Motor power output S1 100%

0,55 kW / 400 V

Motor power input S6 40%

0,80 kW / 400 V

Machine dimension (W x D x H)

380 x 620 x 1000 mm

Weight approx.

54 kg

  • High quality ball bearings allow for high concentricity (≤ 0,03) measured at spindle
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), height adjustment via gear rack
  • Potation switch for right and left turn
  • Powerful, high-torque aluminium motor according to IP 54 standard
  • High grade keyless drill chuck comes standard
  • Treated machine base allows clamping of oversize workpieces
  • Features T-slots on polished base
  • Ergonomical handles allow for high work comfort



Standard accessories:

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Protective cover
  • Left and right turning
  • Tools



Optional accessories:

  • Drilling machine vise BM 125 (Art.Nr.:28-2000)
  • 19 pcs. set TiN-coated HSS drills, 1-10 mm (Art.Nr.:41-1000)
  • 25 pcs. set TiN-coated HSS drills, 1-13 mm (Art.Nr.:41-1010)
  • 50 pcs. set TiN-coated HSS drills, 1-5,9 mm (Art.Nr.:41-1015)
  • 130 pcs. set TiN-coated HSS drills (Art.Nr.:41-1024)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)
