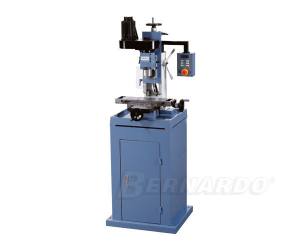

Bernardo BFS 16 drilling and milling machine

Product No.:
BGF 16
Shipping time:
1-3 Weeks
Availability:
0
Print data sheet
Print
Wishlist

2.368,71 EUR
plus. 19 % Tax excl. Shipping costs
- +


Bernardo BFS 16 Bohr- und Fräsmaschine


Bernardo BFS 16 drilling and milling machine.



The universal machine BFS 16 is not only useable for drilling and milling works, also sanding works are possible without problems. Additional features of this machine are the stepless speed adjustment at drilling and milling, die the digital speed indication and the powerful direct current motor.



Drill capacity in steel

16 mm

Face mill capacity max.

50 mm

End mill capacity max.

16 mm

Distance spindle to column

80 mm

Distance spindle / table min./max.

40 - 220 mm

Spindle speed, stepless

100 - 2500 rpm

Spindle taper

MT 3

Table size / T-slot size

450 x 120 mm / 8 mm

Travel (x / y)

180 / 140 mm

Mill head tiltable

-90° to +90°

Mill head adjustable in height

125 mm

Max. workpiece height at sanding

145 mm

Speed of sanding disc

2500 rpm

Motor power output S1 100%

1,0 kW / 230 V

Motor power input S6 40%

1,4 kW / 230 V

Machine dimension (W x D x H) 570 x 780 x 1620 mm

Weight approx.

185 kg

  • Universal useable for drilling, milling and sanding
  • Direct current motor for ideal torque in the lower areas of speed
  • Optimal price-performance ratio due tue the large standard accessories
  • Digital speed indication for exact adjustment of the required speed
  • Refitting to sanding machines takes place quick and easy
  • Double-side tiltable mill head for extended use (-90° to +90°)
  • Dovetail guiding in x-, y- and z-axis, adjustable via gibs
  • Serially with left and right turning device, optimal for thread cutting



Standard accessories:

  • Sanding device
  • Sanding disc 100 x 20 x 16 mm
  • Long milling arbor 16 mm
  • Horizontal counter bearing
  • Digital speed indication
  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Drawbar M 12
  • 2 T-nuts
  • Tools
  • Stand



Further optional accessories:

  • Permanent magnetic clamping plate 170 x 100 mm
  • Sanding disch 100 x 20 x 16 mm
  • Milling cutter 60 x 16 x 1,2 mm
  • Edge finder set 5-pcs.
  • Quick clamping vise PS 50
