Bernardo Drilling machine KBM 40

Product No.:
01-1342XL
Shipping time:
3-4 days
Availability:
0
Print data sheet
Print
Wishlist

8.265,44 EUR
plus. 19 % Tax excl. Shipping costs
- +

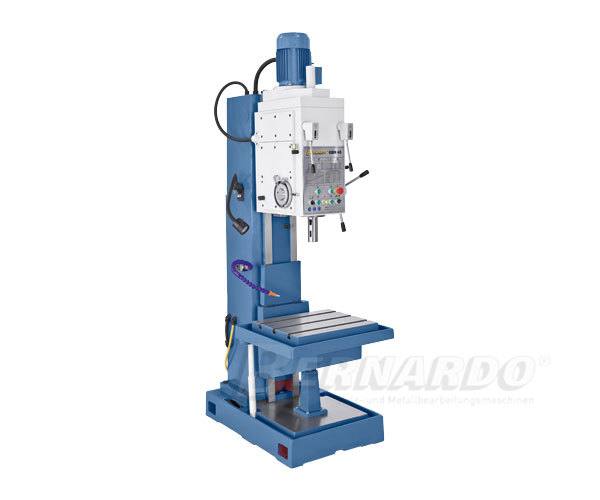

Bernardo Drilling machine KBM 40


The KBM series features a range of models suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes these machines suitable for heavy machining in engineering, production and construction.



Drilling capacity in steel

40 mm

Thread cutting max.

M30

Torque

350 Nm

Travel of drill head

200 mm

Morse taper

MT 4

Spindle speed / steps

31,5 - 1400 rpm, 12 steps

Feed range

(9) 0,056 - 1,8 mm/rev.

Feeding force

16000 N

Distance spindle to column

335 mm

Distance spindle to table max.

740 mm

Spindle stroke

250 mm

Table size / T-slot size

560 x 480 mm / 18 mm

Table lift

315 mm

Motor power

3,0 kW

Machine dimension (W x D x H)

750 x 1150 x 2500 mm

Weight approx.

1250 kg

  • Solid construction of column and base designed for excessive use
  • Powerful drive motor features high torque and large feed force
  • Solid grey cast iron construction maximizes table load capacity
  • Tapping device comes with automatic change of rotation at adjusted drill depth
  • Convenient control lever allows for quick and easy feed and speed adjustment
  • Polished gear wheel, in oil bath, ensure smooth operartion
  • Automatic spindle feed, tapping device and work lamp included in standard equipment
  • Wide, heavy-duty dovetail guidings feature adjustable gibs



Standard accessories:

  • Coolant device
  • Thread cutting device
  • Left and right turning
  • Halogen light
  • Morse taper drill sleeve
  • Tools
  • Protective cover





Optional accessories:

  • Keyless drill chuck with direct mount MT 4, 1 - 16 mm (Art.Nr.:24-1073)
  • Keyless drill chuck 1 - 16 mm / B 18 (Art.Nr.:24-1083)
  • Morse taper drill chuck arbor MT 4 - B 18 (Art.Nr.:24-1009)
  • Deluxe clamping kit set 52 pcs., 14 mm, M 12 (Art.Nr.:28-1001)
  • Deluxe clamping kit set 52 pcs., 18 mm, M 16 (Art.Nr.:28-1003)
  • Two-parts milling vise MS 160 (Art.Nr.:28-1020)
  • Drilling machine vise BMH 150 (Art.Nr.:28-2012)
  • Drilling machine vise BMI 150 (Art.Nr.:28-2017)
  • Drilling machine vise BMS 200 (Art.Nr.:28-2020)
  • Machine mount MS 80 (Art.Nr.:53-2000)
  • Bernardo Drilling fluid DRILL, 1:20 dilutable, 5 l canister (Art.Nr.:54-1200)
