Bernardo ABM 860 T - 230 V drilling machine

Product No.:
ABM 860 T - 230 V
Shipping time:
3-4 days
Availability:
0
Print data sheet
Print
Wishlist

319,71 EUR
plus. 19 % Tax excl. Shipping costs
- +


Bernardo ABM 860 T - 400V Tischbohrmaschine

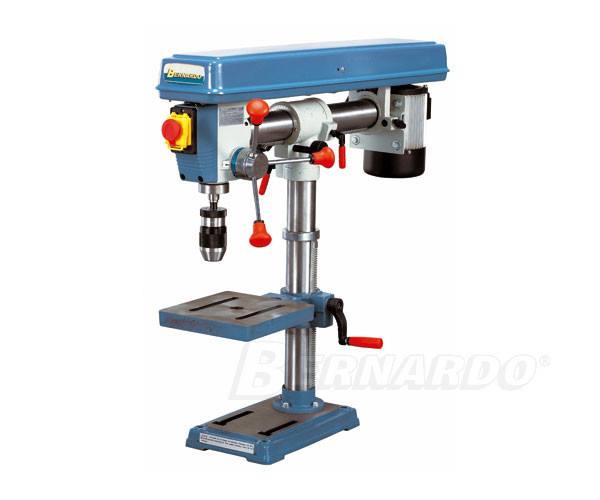

Bernardo ABM 860 T - 230 V drilling machine




Diese Maschine wird leider nicht mehr hergestellt ist nicht mehr lieferbar !

The radial drilling machines of the ABM-series are universally applicable due to the extractable and tiltable drilling head.


Drilling capacity max.:                                        16 mm
Drill chuck:                                                            3 - 16 mm / B 16
Spindle taper:                                                       MT 2
Min./max. distance spindle to column:            115 - 428 mm
Spindle speeds:                                                  (5) 460 - 2890 rpm
Head tiltable:                                                        45°L - 90°R
Spindle stroke:                                                     80 mm
Column diameter:                                               60 mm
Table size:                                                            230 x 220 mm
Base:                                                                     240 x 200 mm

Motor power output S1 100%:                          0,40 kW
Motor power input S6 40%:                               0,60 kW

Voltage:                                                                 230 V or 400 V
Machine dimension (W x D x H):                      280 x 850 x 800 mm
Weight approx:  46 kg


  • Tiltable working table from -45° to +45° and 360° turnable
  • Safety switch with undervoltage release
  • Spindle runs in precision ball bearings
  • Extract-, turn- and tiltable drill head
  • Solid, grinded steel column
  • Aluminium motor according to IP 54 - 400 V


Standard accessories:

  • Drill chuck arbor MT 2 / B 16
  • Keyless drill chuck 3 - 16 mm / B 16


Bernardo ABM 860 T - 400V Tischbohrmaschine Bernardo ABM 860 T - 400V Tischbohrmaschine Bernardo ABM 860 T - 400V Tischbohrmaschine
