» » Bernardo glazing machine DP 100

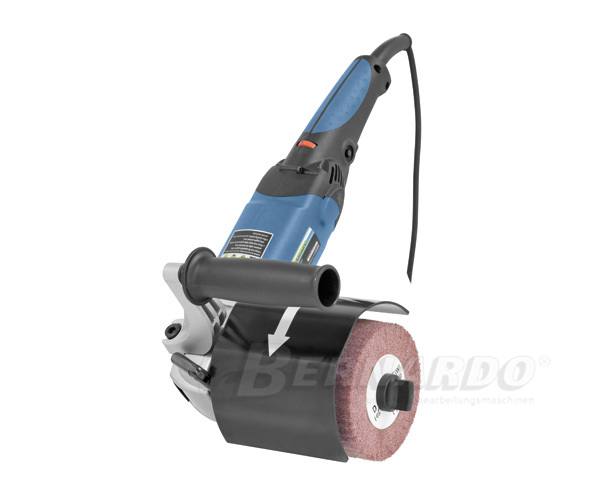

Bernardo glazing machine DP 100
|
The DP 100 glazing machine is the optimal tool for grinding, polishing, matting and structuring various materials, such as stainless steel, non-ferrous metals etc. In addition this machine is also suitable for deburring, cleaning surfaces and removing rust and paint residues.
Max. sanding disc diameter
|
100 mm
|
Sanding width min./max.
|
50 / 100 mm
|
Shaft diameter
|
19 mm
|
No load speed
|
1000 - 2400 rpm
|
Input power
|
1200 W
|
Output power
|
700 W
|
Voltage
|
230 V
|
Weight approx.
|
4,8 kg
|
- Optimal tool for glazing, polishing, brushing, structuring, deburring, smoothening and removing rust
- Ideal for processing stainless steel, cast iron, non-ferrous metals, aluminium, plastics, wood etc.
- Aluminium cast iron gear housing allows for long life span
- Stepless speed settings allow for ideal adjustment to the workpiece
- Ergonomical two-hand operation ensures high work comfort
- Powerful drive motor features soft start and overload protection
- Electronics are designed to ensure constant band speed
Standard accessories:
- Plastic box
- Inflatable rubber sanding drum
- Air pump
- Drive pulley
- Set of arbor spacer discs (10 pcs.)
- Sanding sleeve Ø 90 mm x 100 mm, Grit 60
- Sanding sleeve Ø 90 mm x 100 mm, Grit 100
- Sanding sleeve Ø 90 mm x 100 mm, Grit 180
- Surface conditioning belt Ø 90 mm x 100 mm
- Multi disc grinding wheel 100 x 100 x 19 mm
- Hook & loop sanding belt 40 x 600 mm, G 120
- Hook & loop surface conditioning belt 40 x 600 mm
- Hook & loop belt closing strap 30 x 700 mm
- Operation manual
Optional accessories:
- Inflatable rubber sanding drum (Art.Nr.:49-1100)
- Air pump (Art.Nr.:49-1101)
- Drive pulley for belts (Art.Nr.:49-1102)
- Set of arbor spacer discs (10 pcs.) (Art.Nr.:49-1103)
- Sanding sleeve Ø 90 mm x 100 mm, G 60 (5 pcs.) (Art.Nr.:49-1105)
- Sanding sleeve Ø 90 mm x 100 mm, G 100 (5 pcs.) (Art.Nr.:49-1107)
- Sanding sleeve Ø 90 mm x 100 mm, G 180 (5 pcs.) (Art.Nr.:49-1109)
- Surface conditioning belt Ø 90 mm x 100 mm (5 pcs.) (Art.Nr.:49-1110)
- Lamellen-Schleifrad 105 x 100 x 19 mm (2 pcs.) (Art.Nr.:49-1115)
- Hook & Loop sanding belt 40 x 600 mm, G 120 (10 pcs.) (Art.Nr.:49-1124)
- Hook & Loop surface conditioning belt 40 x 600 mm (2 pcs.) (Art.Nr.:49-1126)
- Hook & Loop belt closing strap 30 x 700 mm (2 pcs.) (Art.Nr.:49-1130)
|
|
