Scheppach Circular sawbench ts 2010 / new Modell TS 2100

Product No.:
SP 5322 0901
Shipping time:
1-3 Weeks
Availability:
0
Print data sheet
Print
Wishlist

856,02 EUR
plus. 19 % Tax excl. Shipping costs
- +




Accurate – versatile – port­able. Ideal for the small workshop or on site.  Not available anymore! NEw Modell TS 2100

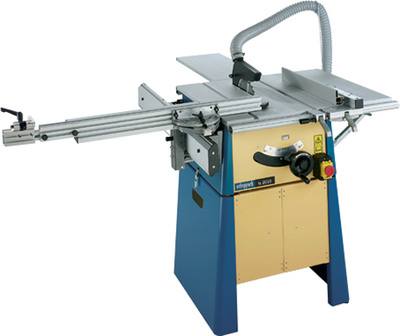

The new scheppach ts 2010 circular sawbench.


With the new ts 2010 circular sawbench, scheppach offers all the versatility of a professional machine in a compact sawbench that is perfect for even the smallest workshop. ­Optional table extensions can be ­dismantled in seconds so the ma­chine can be transported in the boot of a car. Even the cabinet base folds flat for transporting or storage. The table width and length extensions work on the “tongue and groove” principle and quickly slot together to form a large working surface if required.

scheppach innovation.
Included as part of the standard specification is scheppach’s patented Duplex dual rise & fall/tilt mechanism offering both rapid and fine adjustment to the height and tilt sett­ings from a single handwheel which is conveniently positioned at the front of the machine.

No other sawbench betters the accuracy of the scheppach “T-Square” saw fence system giving accuracy of 1/10 of a millimetre to the rip fence setting which is enhanced by the magnifying glass. Precise stops are provided for 0 and 45 degree tilt settings and both TCT sawblade and mitre gauge come as standard. Efficient sawdust extraction from the over­head crown guard and main sawdust chute is also ­included.

Start with the basic ma­chine for bench mounting or add scheppach’s precise sliding table carriage and table width and length extensions. And from the moment your wood comes into contact with that ­constant 52 m/second cutt­ing speed powered by the 1.8 HP single phase motor, you will experience that feeling of sawing satisfaction that is rarely found in a machine of this size.

scheppach quality has never been this affordable.

Technical data

L/W/H mm

720/450/300

Table size mm

480 x 600

Sawblade Ø mm/teeth

200/24

Height adjustment mm

0-60

Tilting range °

45

Rpm

5,000

Cutting speed m/sec

52

Angle fence °

2 x 60

Suction connector Ø mm

50 and 100

Weight approx. kg

36



Cutting details

Cutting width or depth with



- ripping fence mm

230

- table width extn. mm

480

- angle fence mm

250

- sliding carriage mm

600

Cutting depth at 90° mm

60

Cutting depth at 45° mm

48



Motor



220-240V/50 Hz

Input kW (HP)

1.8 (2.5)

Output kW (HP)

1.2 (1.6)

Rpm

2,800

Order No.

5322 0901
