Metallkraft Motor-driven round bending machine RBM 2050-15 E Pro

Product No.:
381 3302
Shipping time:
1 week
Availability:
0
Print data sheet
Print
Wishlist

9.471,00 EUR
plus. 19 % Tax excl. Shipping costs
- +

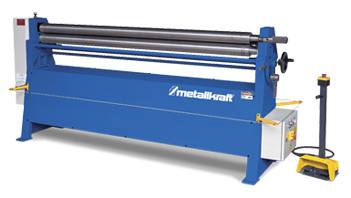

Metallkraft Motor-driven round bending machine RBM 2050-15 E Pro

RBM E - Motor-driven round bending machine with powerful electrical drive and foot control as well as asymmetric 3-cylinder system for industry and craft


Metallkraft motorische Rundbiegemaschine RBM 1270-25 E


    ·  Solid grey cast iron structure
    ·  Asymmetric 3-cylinder system with slewing top cylinder
    ·  Easy-to-adjust top and bottom cylinder
    ·  Cylinders made of ST-1050 high-pressure steel
    ·  Powerful electrical motors of  1.1 resp. 1.5 kW
    ·  Serial with conical bending equipment

    ·  Serial groove to insert a wire on the bottom and rear cylinder
    ·  Due to the foot control both hands are free to supply the material




Metallkraft motorische Rundbiegemaschine RBM 1270-25 EPlease indicate the type of material which needs to be manufactured when ordering!

Metallkraft motorische Rundbiegemaschine RBM 1270-25 E
·  Top and bottom cylinder  individually adjustable by handwheel  (RBM 1030-30 E and  RBM 2030-15 E )

Metallkraft motorische Rundbiegemaschine RBM 1270-25 E
·  Tilting top cylinder

**Indications regarding the bending performance are related to 24 kg/sqm bending limit for steel sheet; sheet thickness for VA: Factor 0.5; sheet thickness for aluminium: Factor 1.2

Modell RBM 2050-15 E Pro
Artikel-Nr. 381 3302


Technische Daten
Wälzlänge 2050 mm
Blechstärke max. 1,5 mm
Walzen-ø 95 mm
Biege-ø 195 mm
Motorleistung 2,2 kW/400 V
Gewicht 650 kg
Abmessungen LxBxH in mm 3080 x 700 x 1250
Abmessungen LxBxH in mm 3200 x 750 x 1000
