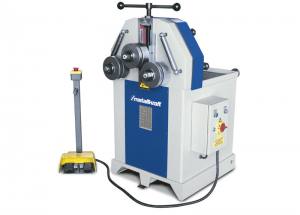

Metallkraft Ring bending machine PRM 35 F


3.684,35 EURplus tax excl. Shipping costs



Product No.:
381 2035
Shippingtime:
Weight per unit:
350 kg

Metallkraft Ring bending machine PRM 35 F



Ring bending machine, horizontally and vertically applicable for profiles and tubes, with foot control



·  Solid grey cast iron structure
·  Horizontal and vertical working option
·  Roller driven via gear
·  Equipped with foot control

·  Including specially hardened bending rolls
·  Shafts made of special steel, hardened and  ground

·  Lateral mangle rolls, infinitely variable
·  2 driven rolls


Metallkraft Ringbiegemaschine PRM 35 F
Anwendung Ringbiegen

Metallkraft Ringbiegemaschine PRM 35 F

Metallkraft Ringbiegemaschine PRM 35 F
Anwendung Spiralbiegen mit optionalem Biegewerkzeug

Metallkraft Ringbiegemaschine PRM 35 F   Metallkraft Ringbiegemaschine PRM 35 F
  • Optionales Biegewerkzeug zum Drehen von z.B. schmiedeeisernen Zierstäben (Abb. links, ähnlich)
  • Option Spezial Richtrollen seitlich, für Winkeleisen (Abb. rechts)

Biegemöglichkeiten Standart-Biegerollen

          Material                  max. Größe   min. Biege-ø



            60 x 10             800
            40 x 10             500




            100 x 15            750
             60 x 10             600




       35 x 35            1200
       20 x 20              400



         60 x 7              900
         50 x 6              400



         60 x 7            900
         50 x 6            650




        UPN 80          1000
        UPN 60            550



          UPN 80           1200
          UPN 30             800



             60 x 60 x 6      1200
             50 x 50 x 5        850




       50 x 50 x 6      1200
       30 x 30 x 3        700



          60 x 7            900
          50 x 6            650



               ø 35               800
               ø 30               600




             ø 70 x 2          1200
             ø 30 x 2            350




              2" x 2,9          1200
              1" x 2,3            350




            50 x 3           2000
            40 x 3             800




           70 x 30 x 2      1500
           50 x 40 x 3      1500


Biegeleistungsangaben beziehen sich auf 24 kg/m2 Blechbiegegrenze.


Metallkraft Ringbiegemaschine PRM 35 F
·  Optionally the machine can be equipped with bending rollers particular for your requirements
·  Also untypical sizes can be manufactured  upon request

Scope of delivery
·   Serial including   standard bending rolls  (refer to table)

Modell PRM 35 F
Artikel-Nr. 381 2035

Technische Daten
Wellen-ø 50 mm
Walzen-ø oben 155 mm
Walzen-ø unten 155 mm
Geschwindigkeit 4,5 m/min.
Motorleistung 1,5 kW
Anschluß 50 Hz 400 V
Gewicht 350 kg
Abmessung in mm 660 x 900 x 1355

Zubehör für PRM 35 F Artikel-Nr.
Digitalanzeige Einstellmaß 388 0087
Spezial-Richtrollen seitlich, für Winkeleisen 388 0088
Biegewerkzeug zum Drehen von Stangen 388 0153
Spiral-Biegewerkzeug 388 0154
Stahl-Eisenrollen 0 - 33,7 mm 388 0089
Stahl-Eisenrollen 34 - 48,3 mm 388 0090
Stahl-Eisenrollen 49 - 60,3 mm 388 0091
Winkelrollen Stahl-Eisen 30x30x3 388 0092
Winkelrollen Stahl-Eisen 40x40x5 388 0093
Winkelrollen Stahl-Eisen 50x50x6 388 0094

Kunststoffrollen f. Alu /Edelstahl 0-33,7 mm

388 0095

Kunststoffrollen f. Alu /Edelstahl 34-48,3 mm

388 0096
Kunststoffrollen für Alu 49 - 60,3 mm 388 0097

Kunststoffwinkelrollen f. Alu /Edelstahl 30x30x3

388 0098

Kunststoffrollen f. Alu /Edelstahl Sondermaß



Kunststoffwinkelrollen f. Alu /Edelstahl 40x40x5

388 0099

Kunststoffwinkelrollen f. Alu /Edelstahl 50x50x6

388 0100

Kunststoffwinkelrollen f. Alu /Edelstahl Sondermaß
