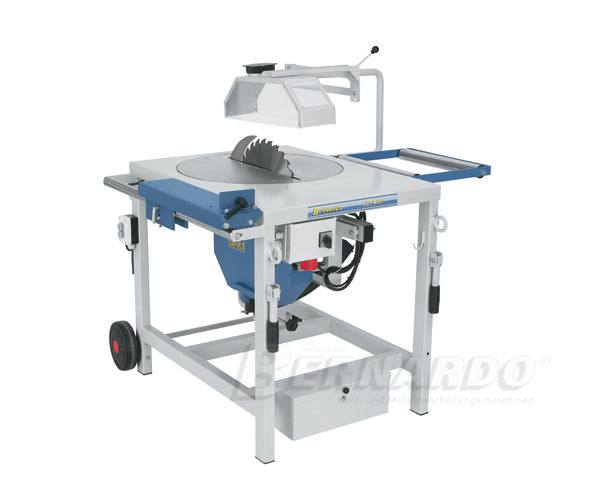

Bernardo heavy duty circular saw UZT 400
|
|
The UZT 400 heavy duty circular saw is suitable for cross cuts and longitudinal cuts. The rotary disc and the tiltable sawblade allow a large variety of applications, such as jack rafter cutting, ripping, mitre and straight cross cutting. It allows the production of valley- and hip rafter as well as the cutting of gutter boards and wedge planks.
Table size
|
945 x 715 mm
|
Max. sawblade diameter
|
400 x 30 mm
|
Max. cutting height 90° / 45°
|
120 / 90 mm
|
Table height
|
845 mm
|
Moveable infeed roller table (optional)
|
1000 x 550 mm
|
Moveable outfeed roller table (optional)
|
1000 x 550 mm
|
Speed main sawblade
|
2800 rpm
|
Dust extraction outlet top / bottom
|
100 / 100 mm
|
Motor power output S1 100%
|
2,8 kW (3,8 HP)
|
Motor power input S6 40%
|
3,9 kW (5,3 HP)
|
Voltage
|
400 V
|
Machine dimensions (W x D x H)
|
1350 x 1400 x 1200 mm
|
Machine dimensions with roller tables*
|
3500 x 1400 x 1200 mm
|
Weight approx.
|
210 kg
|
* optional
- Simultaneously adjustable rotary disc (up to 90º) and sawblade (up to 45º)
- Ideal device for experienced craftsmen for building for instance carports, garden and dog huts, canopies etc.
- Lever allows for cross cutting, saw unit travels from bottom to top
- Solid and easily adjustable saw unit for cutting heights up to 120 mm
- Add the optionally available infeed and outfeed roller tables to achieve the maximum capacity of this model
- User-friendly saw unit convenient for various cutting operations
- Maintain a clean work environment by connecting a dust collector to the sawblade cover or the saw unit
Standard accessories:
- Carbide sawblade 400 x 4,0 x 30 mm, 28T
- Protective cover with dust extraction outlet
- Roller table
- Carriage
- Tool storage
- Fixed roller table
- Push stick
Optional accessories:
- Carbide sawblade 400 x 4,0 x 30 mm, 96T (Art.Nr.:18-1003)
- In-feed roller table 1000 mm (Art.Nr.:09-1023)
- Out-feed roller table 1000 mm (Art.Nr.:09-1024)
|
|
|
|
