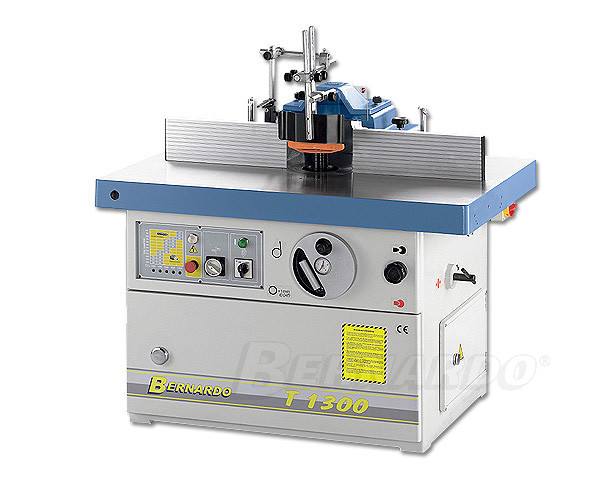

Bernardo TS 1300 spindle moulder with tilting spindle


0,00 EURplus tax excl. Shipping costs



Product No.:
09-1312
EAN:
9009468012069
Shippingtime:
Weight per unit:
530 kg
Bernardo TS 1300 spindle moulder with tilting spindle

Bernardo TS 1300 spindle moulder with tilting spindle


Bei der Entwicklung der Maschinen wurde auf Sicherheit und einfache Handhabung größter Wert gelegt, um gute Arbeitsbedingungen und optimalen Bedienungskomfort zu gewährleisten. Die stabile Konstruktion aus Grauguss und Stahl gewährleistet auch auf Dauer hohe Fertigungsqualität und Präzision.

Table size (T 1300 / TS 1300) 1300 x 850 mm
Working height 860 mm
Spindle diam. 30 mm
Tilting spindle (Model TS) -5° to +45°
Height adjustment of spindle 170 mm
Spindle working length 150 mm
Max. tool diameter 330 mm
Max. tool diameter concealed 210 mm
Table opening 235 mm
Spindle speed 3000/4000/6000/8000/10000 rpm
Motor power 5,5 kW (7,5 HP)
Weight approx. 530 kg
  • Electrical equipment 400 V / 50
  • Serially equipped with left-right turning
  • Large speed range (5 steps) from 3000 - 10000 rpm
  • Buckling resistant cast iron table for highest precision
  • Moulding fence with centralised locking and both-sided fine adjustable fences
  • Hand wheel with digital indicator for spindle tilting
  • Mitre fence with eccentric holder
  • Electrical speed indication via LED
  • Serially with changing spindle ISO 40
  • Large cast iron aggregate
  • Dynamic balanced spindle for precise run
  • Chip discharge trough the moulding fence and dust extraction under the table



Further optional equipment:

  • integral saftety guides 500 mm
  • spindle speeds 1500 / 3500 / 5500 / 7500 / 900 rpm (only in connection with machine)
  • collet chuck device (6, 8, 9, 12 mm)
  • interchangable spindle 30 mm
  • spindle diameter 40 mm (not according to CE-regulations)
  • spindle diameter 50 mm (not according to CE-regulations)
  • integrated roller table (only in connection with machine)
  • tenoning hood
  • power feeder, various types
