Bernardo drilling maschine BM 20 T - 400 Volt

Product No.:
01-1117
Shipping time:
3-4 days
Availability:
-1
Print data sheet
Print
Wishlist

400,40 EUR
plus. 19 % Tax excl. Shipping costs
- +

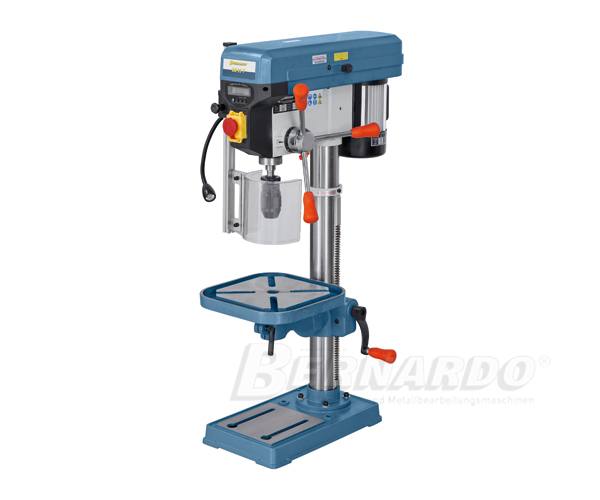

Bernardo drilling maschine BM 20 T 400 Volt



The solid drilling maschine BM 20 T with V-belt drive feature high torque at low speed. These models are predominantely used by craftsmen for training workshops.



Drilling capacity steel

20 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 2

Spindle speed

(16) 180 - 2770 rpm

Distance spindle to column

160 mm

Drilling table tiltable

-45° to 45°

Distance spindle to table max.

440 mm

Distance spindle to base

630 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

285 x 285 mm / 14 mm

Working surface of base

200 x 190 mm

Motor power output S1 100%

0,55 kW / 400 V

Motor power input S6 40%

0,80 kW / 400 V

Machine dimension (W x D x H)

400 x 590 x 980 mm

Weight approx.

45 kg

  • Digital display for spindle stroke and LED-lamp come standard
  • Grey cast iron pulleys ensure smooth run
  • High-quality ball bearings guarantee a high concentricity of ≤ 0,03 mm, measured at spindle
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), gear rack allows height adjustment
  • High performance aluminium motor in accordance with the IP 54 standard
  • Complete with high-quality keyless drill chuck
  • Polished machine base features T-slots
  • Clearly arranged handles ensure high comfort when working



Standard accessories:

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Digital spindle stroke indication
  • LED machine light
  • Protective cover
  • Tools



Optional accessories:

  • Deluxe clamping kit set 52 pcs., 14 mm, M 12 (Art.Nr.:28-1001)
  • Drilling machine vise BM 125 (Art.Nr.:28-2000)
  • Drilling machine vise BMH 125 (Art.Nr.:28-2011)
  • 19 pcs. set TiN-coated HSS drills, 1 - 10 mm (Art.Nr.:41-1000)
  • 25 pcs. set TiN-coated HSS drills, 1 - 13 mm (Art.Nr.:41-1010)
  • 50 pcs. set TiN-coated HSS drills, 1 - 5,9 mm (Art.Nr.:41-1015)
  • 130 pcs. set TiN-coated HSS drills (Art.Nr.:41-1024)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)
