Bernardo DMT 25 milling machine

Product No.:
01-1183
EAN:
9009468000318
Shippingtime:
3-4 days (abroad may vary)
Weight per unit:
108 kg
1.052,89 EURplus 19 % tax, excl. Shipping costs

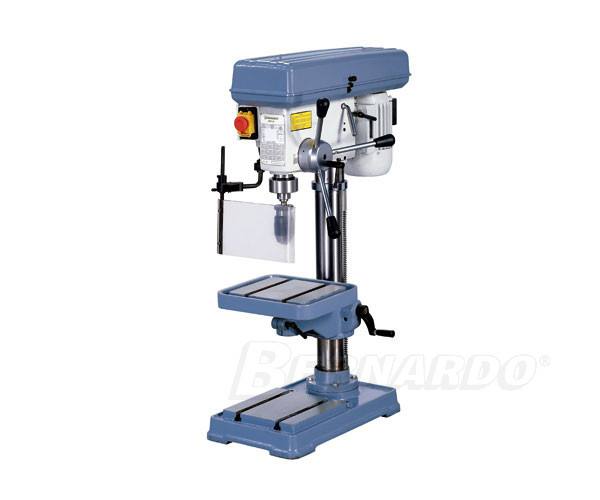

Bernardo DMT 25 Tischbohrmaschine

Bernardo DMT 25 milling machine

The drilling machines of the DMT-series feature a solid construction and are therefore highly suitable for continuous use. The V-models offer an increased comfort in handling the machine due to the automatic spindle feed.

Drilling capacity max.:                                                25 mm
Drill chuck:                                                                   1 - 16 mm / B 18
Morse taper:                                                                 MT 3
Speeds:                                                                        (9) 240 - 2710 rpm
Throat:                                                                           180 mm
Distance spindle / table max.:                                  360 mm
Distance spindle / base:                                           600 mm
Spindle stroke:                                                            95 mm
Column diam.:                                                            85 mm
Table size / T-slot size:                                              310 x 280 mm / 14 mm
T-slot size:                                                                    14 mm

Motor power output S1 100%:                                  1,1 kW / 400 V
Motor power input S6 40%:                                       1,6 kW / 400 V

Total height:                                                                 1060 mm
Weight approx.:                                                            108 kg

  • Serially equipped with automatic spindle feed
  • V-belt drive with balanced drive pulleys for a smooth run
  • Adjustable drill depth stop for precise feeding of the spindle
  • Table with processed surface, adjustable in height via gear rack and crank handle
  • Grinded base plate with T-slots for mounting of large workpieces
  • Guaranteed true running accuracy ≤ 0,02 mm measured in the spindle
  • High-power drive motor even at continuous use
  • Solid drilling machines for industrial use


Standard accessories:

  • Drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 3 / B 18
  • Protective cover
