Bernardo Goliath 500 turning lathe 2000 mm

Product No.:
Goliath 500 2000mm
Shipping time:
1-3 Weeks
Availability:
0
Print data sheet
Print
Wishlist

17.925,14 EUR
plus. 19 % Tax excl. Shipping costs
- +


Bernardo Goliath 500 Universaldrehmaschine

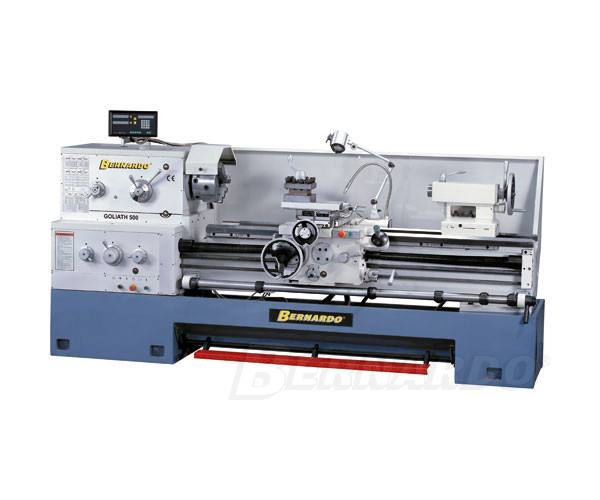

Bernardo Goliath 500 turning lathe 2000 mm.


The universal turning lathe Goliath 500 is useable for light and medium-heavy turning works. Due to the construction (rapid feed longitudinal and cross, mechanic coupling, design,..) is this machine useable for the single part and series production.


Distance between centers

2000 mm

Center height

250 mm

Swing over bed

500 mm

Swing over gap

670 mm

Swing over cross slide

310 mm

Bed width

405 mm

Spindle bore

80 mm

Taper of spindle bore

DIN 55029, D1-8

Speed range

(12) 36 - 1600 rpm

Longitudinal feed

(80) 0,063 - 6,43 mm/rev.

Cross feed

(83) 0,027 - 2,73 mm/rev.

Metric thread

(46) 1 - 224 mm

Inch thread

(46) 1/8 - 28 Gg/1"

Diameter of tailstock sleeve

75 mm

Travel of tailstock sleeve

150mm

Taper of tailstock sleeve

MT 5

Motor power output S1 100%

7,5 kW

Motor power input S6 40% 10,0 kW

Weight approx.

2300 / 2550 / 2800 kg



Machine dimension

Width

Depth

Height

Goliath 500 x 1000

2500 mm

1100 mm

1380 mm

Goliath 500 x 1500

3000 mm

1100 mm

1380 mm

Goliath 500 x 2000

3500 mm

1100 mm

1380 mm

  • Multifunctional applications at the generall engine building, manufacturing, single part production,...
  • Prism bed out of cast iron, inductive hardened and grinded
  • Removable bridge enables working of workpieces with a big diameter
  • Rapid feed longitudinal and cross for reduction of the non-producive time (distance between centers 1500 / 2000)
  • Eletronic cubicle as a whole unit on the back of the machine
  • Central lubricatin for lathe saddle and cross slide
  • Big spindle bore (80 mm) for work pieces with big diameter
  • Softstart due to the mechanic coupling
  • Modern bearing of main spindle due to angular ball bearing in precise construction
  • For strengthenig of the bed guideways and for minimization of vibrations, the bed will be equipped with strong ribs

Standard accessories:

  • 3-jaw chuck 250 mm
  • Independent chuck 320 mm
  • Face plate 450 mm
  • Steady rest
  • Follow rest
  • 4-way tool post holder
  • Morse taper drill sleeve
  • Halogen light
  • Live center
  • Coolant device
  • Centre point
  • Digital readout
  • Foot brake
  • Rapid feed longitudinal and cross
    (from distance between centers 1500 mm)
  • Change gears
  • Splash guard

Further optional accessories:

  • Taper turning attachment
