Bernardo Solid 460 x 1500 universal turning lathe digital


19.434,21 EURplus tax excl. Shipping costs



Product No.:
03-1316XL
EAN:
9009468001919
Shippingtime:
Weight per unit:
2020 kg

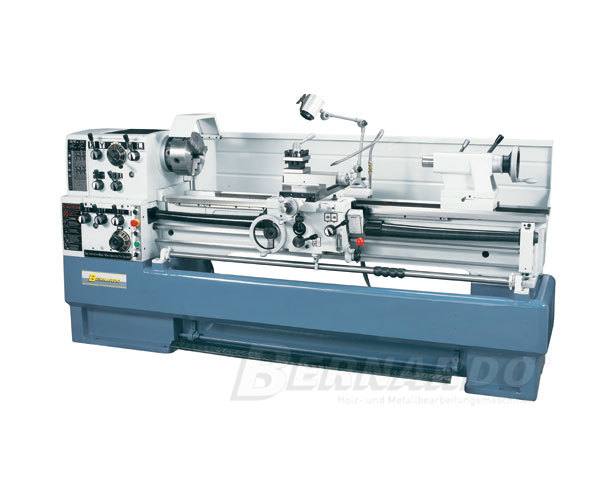

Bernardo Solid 460 x 1500 universal turning lathe digital

 http://www.bernardo.at/shop/media/catalog/product/cache/1/image/9df78eab33525d08d6e5fb8d27136e95/0/3/03-1321xl_1.jpg

Technische Spezifikationen

Distance between centers

1500 mm

Center height

230 mm

Swing over bed

460 mm

Swing over gap

690 mm

Swing over cross slide

274 mm

Bed width

300 mm

Spindle bore

58 mm

Spindle nose fixture

DIN 55029, D1 - 6

Speed range, 2 steps

30 - 400 / 400 - 2000 rpm

Longitudinal feed

(42) 0,031 - 1,7 mm/rev.

Cross feed

(42) 0,014 - 0,784 mm/rev.

Metric thread

(41) 0,1 - 14 mm

Inch thread

(60) 2 - 112 threads/1“

Diameter of tailstock sleeve

60 mm

Travel of tailstock sleeve

130 mm

Taper of tailstock sleeve

MT 4

Motor power

5,5 kW (7,5 HP)

Machine dimension (W x D x H)

2750 x 1080 x 1370 mm

Weight approx.

2020 kg

Features of turning lathe digital

  • State-of-the-art main spindle bearing with high-quality angular ball bearings
  • Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
  • Stepless speed adjustment, set speed can be read on digital display
  • Hardened, polished gear wheels and shafts, even in feed unit
  • Including 4 adjustable cams for automatic shut-down of the apron
  • Centrally positioned, practical feed and thread cutting controls (with leadscrew and feed rod)
  • Large gear wheels, hardened and polished
  • Straightforward speed and feed adjustments allow for easy and accurate settings
  • Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy



Standard accessories:

  • 3-axis digital readout
  • 3-jaw chuck PS3-250 mm / D6
  • Independent chuck K72-320 mm / D6
  • Steady rest - Passage up to max. 150 mm
  • Follow rest - Passage up to max. 110 mm
  • Initial filling with Shell Tellus 46
  • Face plate 350 mm
  • 40 pos. tool post and holder set
  • Protective device at tool post holder
  • Foot pedal with brake function according to CE
  • Coolant device
  • Frequency inverter
  • Safety clutch
  • Change gears
  • Morse taper drill sleeve
  • 2 dead centers
  • Thread dial
  • LED machine light
  • Splash guard
  • Tools



Optional accessories:

  • Bernardo Standard-4-jaw chuck DK12-D, DIN 55029, DK12-200/D6, cast iron (Art. no. 21-0835)
  • Bernardo Standard 4-jaw chuck PS4 according DIN 6350  PS4-250, cast iron (Art. no. 21-2003F)
  • Soft solid jaws SJ-PS3-250 (Art. no. 21-3205)
  • Soft top jaws STJ-PS3-250 (Art. no. 21-3243)
  • Hard master jaws MJ-PS3-250 (Art. no. 21-3283)
  • Hard reversible top jaws TJ-PS3-250 (Art. no. 21-3323)
  • Soft solid jaws SJ-PS4-250 (Art. no. 21-3223)
  • Soft solid jaws DSJ-DK12-200 (Art. no. 21-0867)
  • Flange FL according DIN 55029, 200 / D6 semi machined, cast iron (Art. no. 21-4057)
  • Flange FL according DIN 55029, 250 / D6 semi machined, cast iron (Art. no. 21-4058)
  • Economy live center Typ PC - MT 4 (Art. no. 22-1003)
  • Medium duty live center with 7 interchangable tips SMA - MT 4 (Art. no. 22-1042)
  • High performance live center NCK-A MT 4 (Art. no. 22-1026)
  • Ball nose live center MT 4 / 125 mm (Art. no. 22-1060)
  • 6 station revolving tailstock turret MT 4 (Art. no. 22-1072)
  • Inserts for tailstock MT 4 (Art. no. 22-1077)
  • 5C fixture with direct mount D1-6 (Art. no. 22-1096)
  • 5C round hole collets set, 3 - 26 mm, 24 pcs. (Art. no. 22-1097)
  • Turning and facing holder size B  25 x 120 mm (Art. no. 23-1007B1)
  • Turning and facing holder size B  32 x 140 mm (Art. no. 23-1007B4)
  • Boring bar holder size B diam. 32 x 130 mm (Art. no. 23-10129)
  • Multipurpose turning tool set, 20 mm, 7 pcs., Tin-coated, set E (Art. no. 44-3088)
  • 6 pcs. turning tools set incl. 1 pc. boring bar, 20 mm (Art. no. 44-2054)
  • Machine mount NE 160 (Art. no. 53-2012)
  • Universal coolant fluid RK 12, 5 l canister (Art. no. 54-1206)
