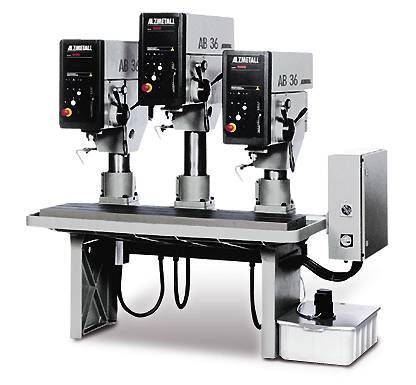

Type	RFT 3/5 for max. 5 Drill Heads
Height of Table	780 mm
Width of Table	2650 mm
Table Clamping Area (width x depth)	2500 x 350 mm
Clamping Slots, number x width x distance between	2 x 14 x 224 mm
Approx. Weight w/o Drill Heads	840 kg
Maximum Number of Drill Heads	5

Combination possibilities RFT 3

Drill Head, height adjustable, 500 mm, (option 700 mm)	AX 3/S	AX 3/SV	AX 4/SV
Short spindle	MT 3	MT 3	MT 4
Distance Spindle to Column	293 mm	293 mm	300 mm
Distance Spindle Nose to Table max.	764 mm	764 mm	804 mm
Distance Spindle Nose to Table min.	264 mm	264 mm	304 mm
Travel of Spindle	120 mm	120 mm	140 mm
Weight	150 kg	160 kg	265 kg
Motor Rpm	1500	1500	1500
Performance	1,1 kW	1,1 kW	3 kW
Spindle Rpm range	160-1125	160-1125	70-2400


Motor Rpm	750/1500	750/1500	750/1500
Performance	1,0/1,6	1,0/1,6	1,8/2,9
Spindle Rpm range	80-1125	80-1125 m	70-1200
Motor Rpm	1500/3000	1500/3000
Performance	1,45/1,9	1,45/1,9
Spindle Rpm range	160-2250	160-2250


Drill Head, height adjustable, 500 mm (option 700 mm)	AB 26/SV	AB 34/SV	AB 40/SV
Spindle	MT 3	MT 3	MT 4
Distance Spindle to Column	293 mm	300 mm	300 mm
Distance Spindle Nose to Table max.	738 mm	768 mm	768 mm
Distance Spindle Nose to Table min.	238 mm	268 mm	268 mm
Travel of Spindle	160 mm	160 mm	160 mm
Weight	250 kg	270 kg	290 kg
Motor Rpm	750/1500	750/1500	750/1500
Performance	1,0/1,6	1,4/2,2	1,8/2,9
Spinndle Rpm range	120-2200	100-1800	100-1600 or 200-3200


Motor Rpm	750/1500	750/1500	750/1500
Performance			1,8/2,9
Spindle Rpm range			70-4000
