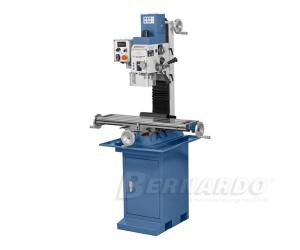

Bernardo BF 30 Super


2.714,97 EURplus tax excl. Shipping costs



Product No.:
02-1043
Shippingtime:
Weight per unit:
220 kg



The model BF 30 Super milling machine

is an upgrade of the approved classic KF 25. The spindle taper is now even bigger, the table is larger and it is serially equipped with two digital displays, showing speed and spindle stroke. In addition, this model features stepless speed adjustment as well as a tiltable mill head from -90° to +90°.



Drill capacity in steel

30 mm

Face mill capacity max.

76 mm

End mill capacity max.

25 mm

Distance spindle to column

180 mm

Distance spindle / table

134 - 495 mm

Spindle stroke

70 mm

Spindle speed, stepless

50 - 2250 rpm

Spindle taper

MT 3

Table size

840 x 210 mm

Travel (x / y)

565 / 215 mm

Mill head tiltalbe

-90° to +90°

Height adjustment of mill head

360 mm

T-slot size

14 mm

Motor power input S1 100%

1,1 kW / 230 V

Motor power output S6 40% 1,6 kW / 230 V
Machine dimensions (W x D x H)* 1100 x 715 x 1200 mm

Weight approx.

220 kg

* without stand

  • Many possible applications, such as groove milling, face milling, countersinking etc.
  • Digital speed and spindle stroke indicator included as standard equipment
  • 2-step gear unit for optimal power transmission
  • Serially equipped with left and right turning, ideal for thread cutting
  • Direct current motor for ideal torque at lower speed
  • Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
  • High-quality bearings guarantee high spindle centricity (≤ 0,015)
  • Mill head tiltable to both sides for angular boring, milling of bevels etc.
  • Large, surface treated cross table
  • Handle for spindle adjustment, handwheel for fine feed



Standard accessoires:

  • Keyless drill chuck 3 - 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Drawbar M 12
  • Digital speed indicator
  • Digital spindle stroke indicator
  • Tools



Optional accessories:

  • Mill chuck set OZ, MT 3, 4 - 16 mm, 9 pcs. (Art.Nr.:18-1007)
  • Mill chuck set ER 32, MT 3, 3 - 20 mm, 13 pcs. (Art.Nr.:26-1004)
  • Mill chuck set ER, MT 3, 3 - 25 mm, 16 pcs. (Art.Nr.:26-1006)
  • Aut. reversible tapping chuck set SUPER M 5 - M 12 (Art.Nr.:24-1096)
  • Boring head combo package diam. 50 mm, incl. boring bars (Art.Nr.:25-1015)
  • Horizontal & vertical rotary table HV 6 - 150 mm (Art.Nr.:27-1000)
  • Dividing plates DP-1 for HV-6 (Art.Nr.:27-1006)
  • Tailstock TS-1 for HV-6 (Art.Nr.:27-1010)
  • Horizontal & vertical rotary table RT 5 - 125 mm (Art.Nr.:27-1033)
  • Face plate diam. 100 mm (Art.Nr.:27-1041)
  • 3-jaw chuck diam. 80 mm with face plate diam. 100 mm (Art.Nr.:27-1042)
  • Semi-universal dividing head BS-0 (Art.Nr.:27-1045)
  • Deluxe clamping kit set 52 pcs., 14 mm, M 12 (Art.Nr.:28-1001)
  • Precision machine vise PS 100 (Art.Nr.:28-2027)
  • Machine vise KV 150 (Art.Nr.:28-2082)
  • Opening wider machine vise FJ 100 (Art.Nr.:28-2085)
  • Edge finder with indicator lamp SOE 20 S diam. 20 mm / L 120 (Art.Nr.:32-1060)
  • Edge finder set 5 pcs. (Art.Nr.:32-1067)
  • 28 pcs. Standard steel parallel set (Art.Nr.:35-1020)
  • 1-axis digital readout system POSITRON P2 - 600 mm (for self installation) (Art.Nr.:37-1050)
  • 10 pcs. TiN-coated roughing end mills, 6 - 25 mm (Art.Nr.:42-1016)
  • 20 pcs. HSS TiN-coated end mills, 3 - 12 mm (Art.Nr.:42-1020)
  • High performance 90° facing square shoulder cutter diam. 50 mm (Art.Nr.:42-2051)
  • Taper shell end mill holder MT 3 - 22 mm (Art.Nr.:26-1044)
  • Universal coolant pump with plastic tank 14 Liter - 230 V (for self installment) (Art.Nr.:51-1003)
  • Stand BF 5 (Art.Nr.:56-1026)
