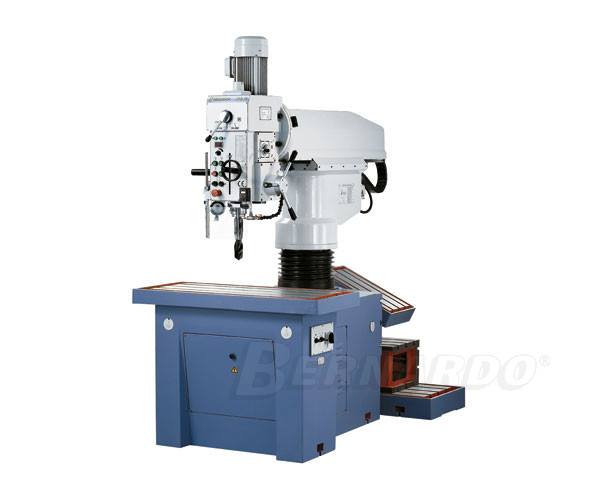

Bernardo SRB 40 radial drilling machine

The radial drilling machine SRB 40 is designed for economical processing of big dimensioned single items or small series with high precision. The construction-conditioned shape enables the operator to perform a multitude of operations in the area of machine construction, repair workshops, mechanical and production workshops.


Drill capacity max.	40 mm
Thread cutting max.	M30
Throat min./max.	415 - 985 mm
Vertical movement of the support	405 mm
Drill head tiltable	-90° to +90°
Spindle stroke	200 mm
Speeds, stepless	50 - 316 / 316 - 2000 rpm
Morse taper	MT 4
Feed area	(6) 0,08 / 0,12 / 0,17 / 0,24 / 0,35 / 0,50 mm/rev.
Distance spindle / table surface	380 - 785 mm
Table size	1210 x 520 mm
T-slot size	18 mm
Column diam.	220 mm
Motor power	2,2 kW
Machine dimension (L x W x H)	2450 x 1200 x 2720 mm
Weight approx.	2800 kg

• A multitude of clamping and processing possibilities due to the construction-conditioned shape
• Electromotive height adjustment of the drill head without altering the drilling position, ideal for depth drilling
• Drill head tiltable by 180°, suport can be moved forwards and backwards and is horizontally turnable
• Thread cutting device and 6 automatic drill feeds included in standard supply
• Big dimensioned table surface (1210 x 520 mm) for simultaneous mounting of several workpieces
• Solid construction guarantees work free-of-vibrations
• Digital readout of speeds and drill depth included at standard accessories
• Quick adjustment of the drill head onto the workpiece, clamping is made hydraulically
• Strongly ripped column guarantees a high rigidity of the extension arm
• Serially with electronic and stepless adjustment of speeds



Standard accessories:

• Halogen light
• Electromagnetic spindle feed
• Digital readout of speeds
• Digital readout of drill depth
• Electromotive drill head adjustment
• Coolant pump
• Keyless drill chuck 1 - 13 mm / B 16
• Drill chuck arbor MT 4 / B 16
• Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1
• Thread cutting device
• Tiltable horizontal table 400 x 600 mm
• Box table 420 x 600 x 300 mm
• Clamping plate 1200 x 550 mm
• Protective cover
