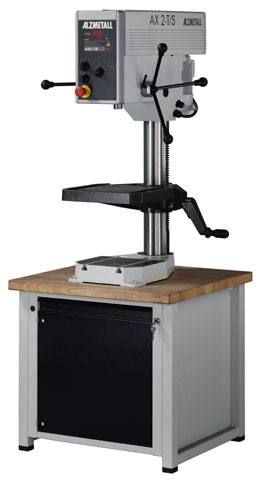

Bench Drilling Machine AX 2-T/S 0.95 kW


4.960,54 EURplus 19 % tax, excl. Shipping costs



Product No.:
AX 2-T/S 0.95 kW
Shippingtime:
No longer available (abroad may vary)
Weight per unit:
155 kg



AX Bench and Column Drilling Machines


TOP QUALITY drilling with complete options


Drilling Capacity in Steel E335 St 60 23 mm

Tapping Performance optional
in Steel E 335 St 60 M 14
In Cast-iron EN-GJL-200 M 16

Tool Taper (short spindle) MT 2
Z-Travel of spindle 100 mm
Distance Spindle to Column 250 mm
Column Diameter 90 mm
Table Clamping area 370 x 300 mm
T-Slots, number x width x distance 2 x 14 x 160 mm
Distance spindle/table min./max. 125/445 mm
Feeds manual
Net weight approx. 155 kg
Drive System infinitely variable
Motor 750 / 1500 Rpm
Performance 0,6 / 0,95 kW
Spindle Rpm range 125-2400 oder 225-4300

Standard Equipment:

    Main Switch (lockable) with Overload Protection Switch
    Self locking Mushroom Button for Emergency-off switch
    Infinitely variable speed drive
    Digital RPM Read-out
    Protection Class IP 54
    Spindle Protection with electric security
    Lacquer: DD-structured grey RAL 7035, anthracite RAL 7016, alu RAL 9006


Options:

09.1 Table/Bench w x d x h 750 x 700 x 840mm (weight approx.65 kg)

10. Spindle Reverse Rotat. Manual Switch with 0-Position, (not with pos. 20.0 + 20.1)

12. Haloflex Machine Light, adjustable (Halogen 12 V/IP 64)

20.0 Tapping Attachment, (automatic reverse) w/o foot switch,
max. 12 tapped holes per minute (tapping capacity depending on Rpm speed)

20.1 Tapping Attachment, (automatic reverse) with additional foot switch,
max. 12 tapped holes per minute (tapping capacity depending on Rpm speed)

25. Coolant Attachment B separate container (33 l), with overload-protected pump and accessories

37.1 Digital Depth Read-Out, 0-fixation (drill start), 5 position LED-Display, characters 13 mm high

50.6 Precision Depth Adjuster and fixed stop.
Precision adjustment to 0,1 mm (spindle stroke reduced by 20 mm)

08. Wooden Packing  w x d x h 1200 x 800 x 1450 mm
