Propane Furnace H4


3.320,00 EURzzgl. MwSt., zzgl. Versand



Art.Nr.:
H4
Lieferzeit:
Versandgewicht:
0 kg

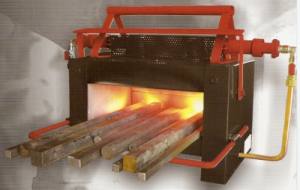

Nargesa Propanofen H4


Im Gegensatz zu Modell H2 ist dieser Ofen mit 4 Brennern ausgestattet, die getrennt funktionieren können, und mit einer Feuerkammer, die mit Keramikfaser isoliert ist.
Schnelles Erreichen der Arbeitstemperatur. Einfaches Anschalten, genau wie bei einem normalen Ofen mit Propangasversorgung.
Erzeugt keine schädlichen Emissionen.
Teil der Maschine abmontierbar, um Stangen in der Mitte zu erhitzen. Druckminderer zwischen dem Tank und dem Zuführrohr.

· Flammenrückschlagsicherung
· Ventil mit Wärmevorrichtung
· Schutzschirm an der Vorderseite

Die Öfen H4 entsprechen den europäischen Normen und Richtlinien für die Produktion von MASCHINEN.


- 4 burners.
- Fast reaching of working temperature.
- Easy ignition like in an usual furnace.
- Propane feeding.
- Does not produce harmful emissions.
- Burners can perform separately.
- Combustion chamber isolated by ceramic fibre.
- Detachable back so metals bars could be heated in the middle.
- Manufactured according to the current directives.
- Pressure reducer between the container and the feeding tube.
- Check valve.
- Thermic device valve.
- Front safety screen.



Gas Forge Nargesa H4 has got four burners.


  • All burners may work independently. There´s no need to make them work altogether.
  • Working temperature, 1300ºC.
  • Adjustable pressure from 0,5 to 2 Bar.
  • Maximum consumption 1 Kg/h. per burner (x4).
  • Propane gas supply.
  • Combustion chamber isolated by ceramic fibre and refractory brick.
  • Useful inner cavity: 280mm width x 100mm height and 470mm depth
  • Removable back door to heat up steel bars in the middle.
  • Maximum capacity Ø 80mm.


Main advantages of using a propane gas furnace instead of a conventional carbon forge:


  • Fast reaching of working temperature.
  • It's clean and it does not produce harmful emisions for health.
  • Easy ignition.
  • Possibility of moving it to the working site:


Safety components:


  • Pressure reducer between the tank and the supply hose.
  • Flame check valve.
  • Thermal device valve: It cancels the gas supply in case of detecting anomaly.
  • Adjustable safety metal screen at the front part. It allows dodging any metal projections that might occur.
  • All components are standard and easy to get at any shop or harware store.
  • Furnace Nargesa H4 is delivered completely mounted.
  • Packaging with wooden pallet and 3-layered cardboard box, suitable for sea freight.
  • Optional: Wooden Packaging NIMF15.

Its simplicity, dimensions, easy ignition and fast reaching of optimum working temperature, make it a very versatile furnace.
Forging furnaces H1, H2 and  H4 are according to the European directives and regulation of manufacturing. CE

 Gas Forges H4
Propane Furnace H4

 Length
Inner 470 mm / External 600 mm
Width
Inner 280 mm / External 550 mm
Height
Inner 100 mm / External 370 mm
Consumption
Max. 1 Kg/h (x4)
Pressure
De 0,5 a 2 bar
Temperature
1300 ºC
Burners
4
Weight
35 Kg



Propane Furnace H4
