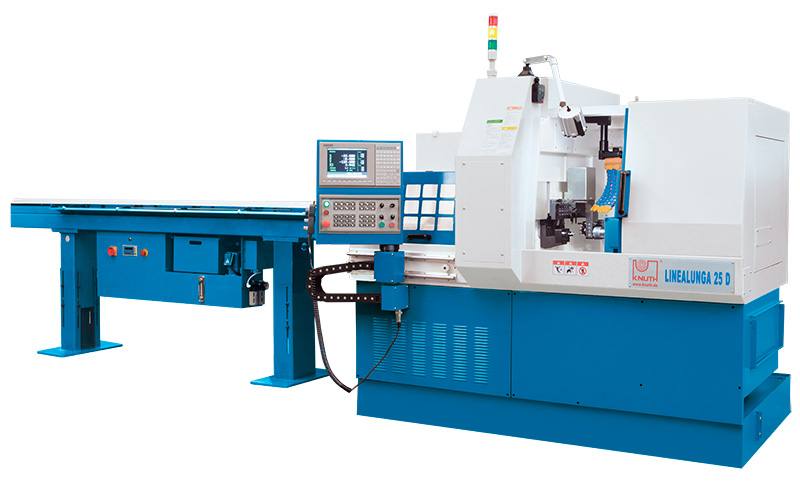

Knuth Swiss Type CNC Langdrehautomat LineaLunga 25D

Swiss-type automatic lathe with headstock and counter spindle, including turning, drilling and driven tools for efficient complete machining

Machine bed is made of Meehanite HAT 300, carefully heat-treated, high precision machined and subjected to strict quality controls
High-quality bearings and linear guides, produced in Japan, feature both accuracy and excellent wear-resistance
High-performance preloaded ball screws are equipped with precision bearings to ensure sustained, smooth, vibration-free operation
High-torque servo motors by renowned suppliers ensure excellent feed and rapid feed dynamics on all axes
5-axis machining with headstock spindle, counter spindle, and including one C-axis allows for the production of complex parts
Competitive price/performance ratio - a concept for quick adaptation to current market situations
Proven design, low-maintenance, and easy handling
Optimum axis travel distribution results in space-saving design
High-performance coolant system maintains optimum tool temperature for long tool life
Up to 260 mm length can be machined in one step resulting in reduced tooling times; subsequent reclamping of the workpiece eliminates change-overs for machining of the workpiece's back side
For tool mounting, only collet systems that are readily available in stores are used
A 4.4 kW main motor provides sufficient reserve power for demanding production conditions
Rapid feeds up to 24000 mm/min, high productivity and production speeds
Optional rod loader for rods up to 3 m is available; suitable for use with third-party products

Specifications - LineaLunga 25D - Swiss Type CNC Langdrehautomat

working area
Turning diameter, vertical	25 mm
Drilling diameter (max.)	10 mm
drilling depth (max.)	35 mm
Machine bottom-to-spindle center distance	1035 mm
workpiece length (max.)	260 mm
travel X-axis	80 mm
travel Y-axis	390 mm
travel Z-axis	360 mm
headstock
spindle speed	6000 rpm
spindle bore	28 mm
feed
rapid feed X1 axis	15000 mm/min
rapid feed X2 axis	15000 mm/min
rapid feed Y-axis	24000 mm/min
rapid feed Z1 axis	24000 mm/min
rapid feed Z2 axis	15000 mm/min
tool head
Turning tools	6 Pieces
tool shank dimensions	12x12 mm
Number of rotating tools	4 Pieces
Rotating tools:
- tool shank dimensions	10 mm (2 Werkzeuge) / 7 mm (2 Werkzeuge)
- Diameter (max.)	10 mm
- Spindle speed (max.)	4000 rpm
- Collet mount (max.)	ER11 / ER16
Number of drill bits	4 Pieces
Number of drill bits (for rear side)	7 Pieces
Collet mount (drill bit)	ER16
boring bar mount diameter	10 mm
accuracies
positioning accuracy X-axis	0,004 mm
positioning accuracy Y-axis	0,005 mm
positioning accuracy Z-axis	0,001 mm
repeatability X-axis	0,003 mm
repeatability Y-axis	0,004 mm
repeatability Z-axis	0,002 mm
drive capacity
motor rating main drive	4,4 kW
Rotating tool motor rating	0,75 kW
motor rating for counter spindle	4,4 kW
Axis motor rating	0,85 kW
total power consumption	15 kVA
measures and weights
overall dimensions	2365x1660x2010 mm
weight	3400 kg

Control - LineaLunga 25D - Swiss Type CNC Langdrehautomat

Syntec ST4421M

Standard equipment - LineaLunga 25D - Swiss Type CNC Langdrehautomat

Syntec ST4421M control, electronic hand-wheel, C-Achse, Pneumatiksystem, Spannzangensystem Hauptspindel, enclosed work space, compressed air gun, Drehwerkzeughalter, bewegliche Führungshülse, Bohrwerkzeughalter für Gegenspindel, angetriebene Werkzeuge (seitlich), Werkzeughalter für Gegenspindel, automatic central lubrication, coolant system, alignment elements, operating tools, operating manual and programming instructions
