Knuth CNC Inclined Bed Lathe Roturn 400 FA
|

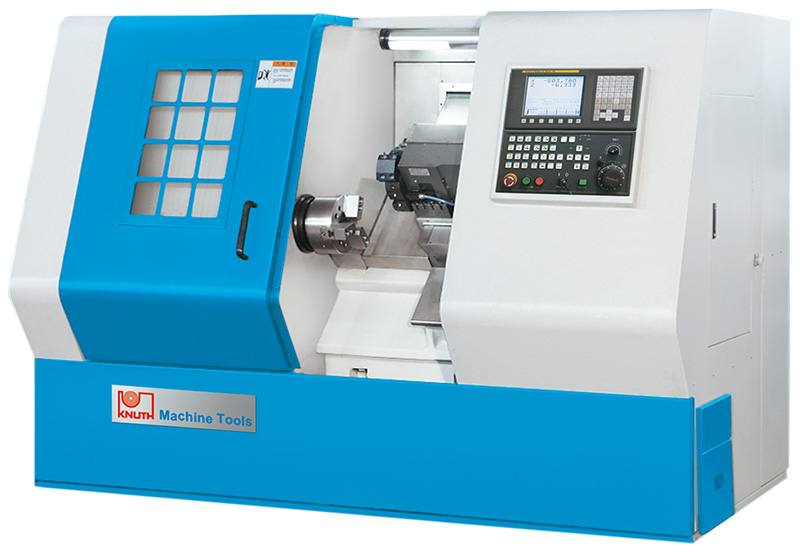

Roturn 480 shown |
|
A successful concept in a new size - completely equipped with Fanuc 0i-Mate TD control, hydraulic tailstock and 6-station tool turret
- larger models also use the proven, rigid 45° inclined bed construction made of premium cast-iron to ensure maximum rigidity and easy chip removal
- rectangular guideways provide excellent rigidity and maximum precision
- 7.5 kW main spindle motor provides high torque across the entire speed range
- the workspace is enclosed on all sides with easy access through a large sliding door for set-up, tooling and unloading
- a high-performance chip conveyor is included in the standard equipment
- Fanuc 0i-Mate TD with Manual Guide 0i features advanced control technology and maximum reliability
- hydraulic 160 mm chuck and hydraulic tailstock are included in standard equipment
- an automatic lubrication system reduces the operator's workload and simplifies maintenance
Specifications - Roturn 400 - CNC Inclined Bed Lathe
working area |
|
center width |
300 mm |
center height |
340 mm |
turning diameter over bed (max.) |
400 mm |
turning diameter over support (max.) |
280 mm |
travel X-axis |
180 mm |
travel Z-axis |
420 mm |
headstock |
|
speed range |
250 - 3000 rpm |
spindle mount |
A2-5 |
spindle bore without draw tube |
52 mm |
spindle bore with draw tube |
32 mm |
feed |
|
rapid feed X-axis |
6000 mm/min |
rapid feed Z-axis |
6000 mm/min |
work feed X-axis |
3000 mm/min |
work feed Z-axis |
3000 mm/min |
tool head |
|
number of tool stations |
6 Pieces |
tool shank dimensions |
20x20 mm |
boring bar mount diameter |
25 mm |
tailstock |
|
tailstock taper |
MT 4 |
tailstock quill diameter |
85 mm |
tailstock quill stroke |
80 mm |
accuracies |
|
positioning accuracy X-axis |
0,016 mm |
positioning accuracy Z-axis |
0,02 mm |
repeatability X-axis |
0,007 mm |
repeatability Z-axis |
0,008 mm |
drive capacity |
|
motor rating main drive |
7,5 kW |
motor rating coolant pump |
0,12 kW |
measures and weights |
|
overall dimensions |
2470x1370x1880 mm |
weight |
3000 kg |
Control - Roturn 400 - CNC Inclined Bed Lathe
Fanuc 0i-Mate TD mit Manual Guide 0i
High Performance for Excellent Productivity
- Easy creation of complex contours
- Advanced fixed cycles, graphical support
- G & M Code help
- ISO CODE Programming Assistant
- DIN / ISO Programming
- Graphic simulation for reliable control of NC programs
- High compatibility with existing Fanuc CNC programs
A wealth of world-class functions in the Basis CNC ensures maximum productivity
- Port for storage card, processing of storage card in DNC operation
- High-Performance digital Servo System on all axes
- optional free M Codes
- optional relay outputs
- RS232 port
- multiple languages
- User-friendly graphic display for visual review of parts program
- Advanced help function and alarm/operating archive
- 64 tool compensation pairs
- Tool life-cycle management: The tools can be subdivided in groups. The life times and tool numbers for each group that are stored in the NC control can be shown in an easy to read table format.
- consistent cutting speed
- process time and parts counter
|
|
Standard equipment - Roturn 400 - CNC Inclined Bed Lathe
Fanuc 0i-Mate TD with Manual Guide 0i, 6-station turret, hydr. 3-jaw chuck Ø 160 mm, hydr. tailstock, chip conveyor, coolant system, automatic central lubrication, operating tools, operator manual
Accessories / Tools - Roturn 400 - CNC Inclined Bed Lathe
8-station tool turret, hydraulic |
Live Centers, assortment MT 4 |
Live Center MT 4 |
Power Worker Metal Cutter |
Coolant Concentrate 5 Ltr. |
|
|
|
|
|
|
