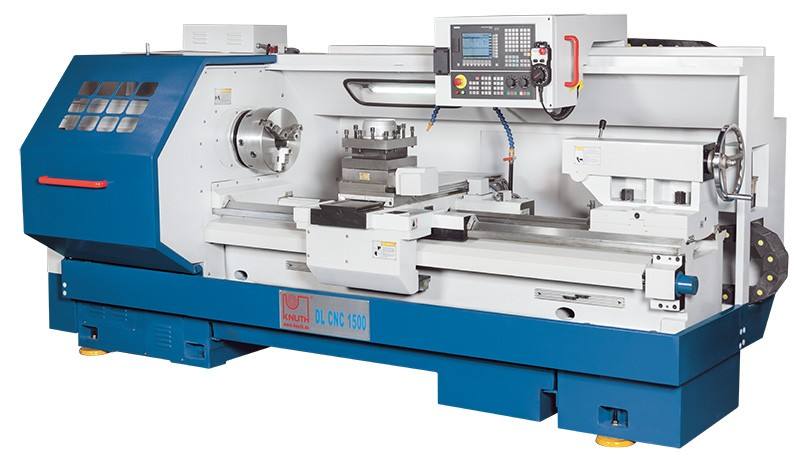

Knuth DL CNC 1500 CNC Box-Way Lathe
Heavy Box-Way Lathe with Siemens control featuring center width up to 1550 mm |
Knuth DL CNC 1500 CNC Box-Way Lathe:
- heavy machine bed made of premium cast-iron with hardened and ground guideways
- large capacity spindle bores up to 105 mm
- 4 hydraulically shifted gear steps for infinitely variable spindle speed ensure high torque at the headstock
- high-torque drives and preloaded ball screws on all axes
- Siemens 808 D is an intuitive, easy to learn control system with extensive cycle options and a Profile Editor utility for easy programming – ideal for batch and single part production of complex workpieces
- Sinumerik 808 on PC Software for external programming and data management is included
- also included are a powerful coolant system and a central lubrication unit
- plus free 1-day training in Wasbek
Specifications - Knuth DL CNC 1500 CNC Box-Way Lathe:
Working area
Workpiece length (max.)
Turning diameter over bed
Turning diameter over support
Travel X-axis
Travel Z-axis
|
1.550 mm
630 mm
350 mm
340 mm
1.350 mm
|
Headstock
Speed range
Headstock torque
Spindle mount
Lathe chuck diameter
Spindle bore
Spindle bore in chuck
|
17 - 1.000 rpm
2.079 Nm
D1-11
325 mm
105 mm
104 mm
|
Feed
Rapid feed X-axis
Rapid feed Z-axis
|
6.000 mm/min
8.000 mm/min
|
Tool head
Number of tool stations
Tool shank dimensions
|
4 Pieces
32x32 mm
|
Tailstock
Tailstock taper
Tailstock quill diameter
Tailstock quill stroke
|
MT 5
100 mm
250 mm
|
Accuracies
Positioning accuracy X-axis
Positioning accuracy Z-axis
Repeatability X-axis
Repeatability Z-axis
|
0,02 mm
0,03 mm
0,01 mm
0,02 mm
|
Drive capacity
Motor rating main drive
Motor rating for X-axis drive
Motor rating for Z-axis drive
Total power consumption
|
11 kW
1,5 kW
2,3 kW
17 kVA
|
Measures and weights
Overall dimensions
Weight
|
3.600x1.500x1.700 mm
4.000 kg
|
Control:
Siemens Sinumerik 808 D Drehen
- self-explanatory, yet powerful CNC functions ensure highest precision at the workpiece and short machining times
- "programGuide Basic" for easy programming via graphical cycle masks, plus a practical contour calculator
- The Sinumerik 808 D Software package for the PC simplifies handling of the control. It can be used as practical training software to program and simulate workpieces offline. This software is included in the standard equipment and can also be used for presentation purposes.
Standard equipment :
Siemens 808 D control, automatic 4-station tool changer, electronic hand-wheel, 3-jaw chuck Ø 325 mm, Sinumerik 808 on PC-Software, USB interface, automatic central lubrication, coolant system, work lamp, operating tools, operating manual and programming instructions
|
