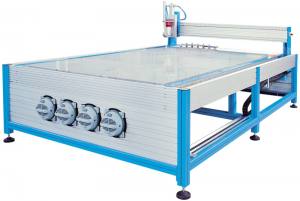

Knuth Bench-type Milling and Engraving System TFGM 2516 Pro AT






Knuth Bench-type Milling and Engraving System TFGM 2516 Pro AT

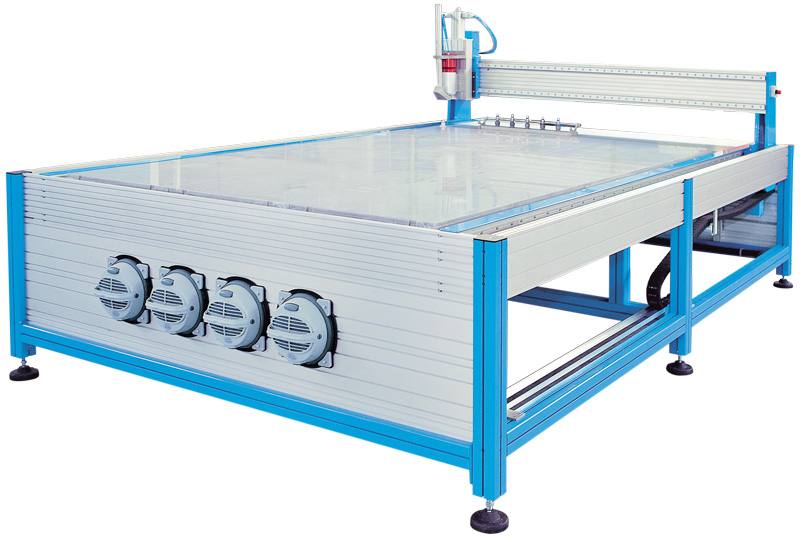

Abb. mit Vakuumtisch


The perfect solution for machining large boards! With cutting speeds up to 150 mm/sec

Perfect cuts and bores within minimum time in all non-ferrous heavy metals, plastic, wood, and with the appropriate equipment even in structural steel

  • Y axis with double linear guides
  • X axis with drives on both sides
  • extra-wide linear guides combined with an efficient gear drive allow rapid feeds up to 12000 mm/min.
  • Z axis includes a motor brake
  • 3 vacuum pumps for optimum workpiece fixation
  • main spindle motor with wide speed range from 3,000 rpm to 100,000 rpm (option)
  • driven by our OPTICUT CNC controller
  • extensive selection of accessories for a wide application
  • either T-slot setup table or vacuum table included at no extra cost

Application Examples:

  • production of advertising material (milling, engraving, cutting)
  • embossing (coins, medals, coining punch)
  • engraving (door signs, goblets)
  • industrial engraving (serial number plates, warning signs)
  • electronics (front plates, control panel labeling, PCBs)
  • model construction (architecture, hobby)
  • precision mechanics
  • Furniture industry (door manufacturing, interiors, store construction, etc.)
  • Additional options: headstock drives in various designs - upon request with automatic tool-changer, air cooling or reduction cooling system, pneumatic clamping or manual clamping, and speeds from 50 to 100000 rpm. Delta / 3-D bundeled end-to-end software solution for CNC routers, engravers, and sign making

Special option: oscillating tangentially controlled cutter head is available in 3 designs for cutting foam, cardboard, corrugated paperboard, rubber, leather, carpeting, etc. with impressive speed and perfection

Specifications - TFGM 2516 Pro AT - Bench-type Milling and Engraving Systems

working area
work space 2550x1550x160 mm
table size (setup table) 2500x1500 mm
working speed (max.) 150 mm/s
rapid feed 12000 mm/min
headstock
speed range 11000 - 25000 rpm
(speed range of headstock is specified for the standard motor)
drive capacity
motor rating headstock 1,05 kW
supply voltage 230 V
measures and weights
weight 405 kg

Control - TFGM 2516 Pro AT - Bench-type Milling and Engraving Systems

CAM-System Opticut CNC 5.0

The Opticut Control Software allows selection of 4 stepper motor axes via the USB port directly from a laptop. An advanced graphic user interface provides quick access to many tasks, like milling drilling, foil cutting, engraving, scanning, plotting and digitizing. The machine area is represented by the CAD-like user interface of the Opticut Software. From this area, all elements can be displayed, like drawing data, workpiece, zero point, park position, or measuring position. Minimum hardware and software requirements for Opticut are listed below:

  • Operating system: Windows 98 / XP / Vista / 7
  • Microsoft. Net Framework V1.1 and Microsoft Internet Explorer 5.01
  • Microsoft Managed DirectX 9 or higher
  • Pentium 400MHZ Processor or higher (or equivalent equipment)
  • CD-ROM drive
  • RAM: 64 MB
  • Hard drive: 40 MB free disk space
  • Controller SMC4D

Opticut CNC 5.0 Features

  • automatic homing
  • zeroing
  • park position
  • spindle with automatic start/stop
  • control for automatic cooling spray (optional)
  • control for height scanning (optional)
  • incremental machining for deep immersion depths
  • automatic tool radius compensation, inward and outward
  • selective machining sequence
  • tool management
  • Cutting Time Determination
  • Import of HPGL.PLT, DIN 66025, .DXF, .EPS and .Al files


Standard equipment - TFGM 2516 Pro AT - Bench-type Milling and Engraving Systems

standard milling motor spindle, exhaust preparation (without a vacuum), collets 3 mm and 8 mm, universal cutter 1,2,3 mm, 4 holding clamps, Opticut CNC CAM System 5.0 - completely wired for connection to customer-provided PC, (System Requirements: Windows 98 / XP / Vista / 7, USB port)

Accessories / Tools - TFGM 2516 Pro AT - Bench-type Milling and Engraving Systems

TFGM ALVINIL-1000
TFGM ALVINIL-2000
TFGM ALVINIL-3000
