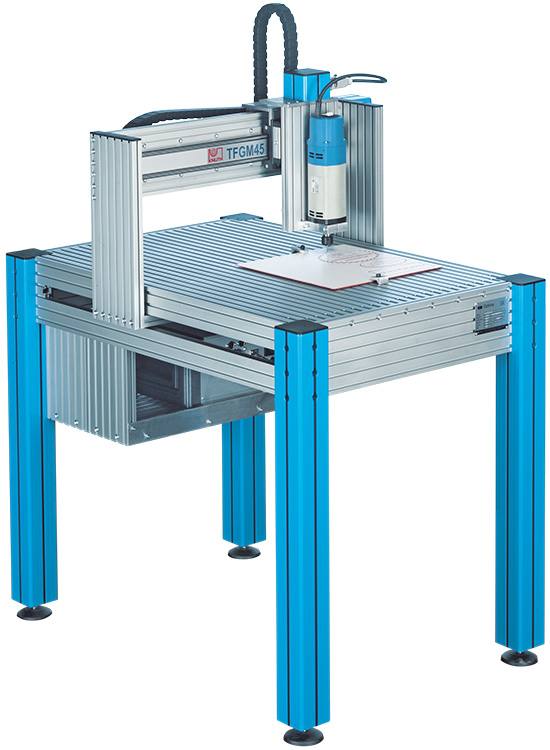

Knuth Bench-type Milling and Engraving System TFGM 45






Knuth Bench-type Milling and Engraving System TFGM 45



Universal use for a variety of milling and engraving applications on different materials like aluminum, brass, copper, PVC, wood, acrylics, hard fiber boards, etc.


  • integrated CAM system for automatic control through a PC/Laptop
  • rigid aluminum construction with stepper motor axis drives plus various equipment options allow universal machining of different materials
  • state-of-the-art controller electronics and user-friendly software for quick and reliable processing of customized machining parameters

Application Examples:

  • production of advertising material (milling, engraving, cutting)
  • embossing (coins, medals, coining punch)
  • engraving (door signs, goblets)
  • industrial engraving (serial number plates, warning signs)
  • electronics (front plates, control panel labeling, PCBs)
  • model construction (architecture, hobby)
  • precision mechanics
  • Furniture industry (door manufacturing, interiors, store construction, etc.)

Specifications - TFGM 45 - Bench-type Milling and Engraving Systems

working area
work space 560x490x85 mm
table size (setup table) 900x600 mm
working speed axe X 60 mm/s
working speed axe Y 60 mm/s
rapid feed 4200 mm/min
headstock
speed range 11000 - 25000 rpm
drive capacity
motor rating headstock 1,05 kW
supply voltage 220 - 230 V
measures and weights
weight 42 kg

Control - TFGM 45 - Bench-type Milling and Engraving Systems

CAM-System Opticut CNC 4.4

Opticut CNC 4.4 CAM System

  • The Opticut Control Software allows selection of 4 stepper motor axes via the USB port directly from a laptop. An advanced graphic user interface provides quick access to many tasks, like milling drilling, foil cutting, engraving, scanning, plotting and digitizing. The machine area is represented by the CAD-like user interface of the Opticut Software. From this area, all elements can be displayed, like drawing data, workpiece, zero point, park position, or measuring position.

Requirements Opticut CNC 4.4

  • Operating system: Windows 98/ME/2000/XP
  • Microsoft. Net Framework V1.1 and Microsoft Internet Explorer 5.01
  • Microsoft Managed DirectX 9 or higher
  • for Joystick
  • Pentium 400MHZ Processor or higher (or equivalent equipment)
  • CD-ROM drive
  • RAM: 64 MB
  • Hard drive: 40 MB free disk space
  • Controller SMC4D

Opticut CNC 4.4 Features

  • automatic homing
  • zeroing
  • park position
  • spindle with automatic start/stop
  • control for automatic cooling spray (optional)
  • control for height scanning (optional)
  • incremental machining for deep immersion depths
  • automatic tool radius compensation, inward and outward
  • selective machining sequence
  • tool management
  • Cutting Time Determination
  • Import of HPGL.PLT, DIN 66025, .DXF, .EPS and .Al files

Opticut was developed based on the new Microsoft. NET Technology and requires Microsoft.NET Framework V1.1. NET Framework may be downloaded free of charge from the Microsoft Website.



Standard equipment - TFGM 45 - Bench-type Milling and Engraving Systems

standard milling motor spindle, collets 3 mm and 8 mm, universal cutter 1,2,3 mm, 4 holding clamps, Opticut CNC CAM System 4.4 - completely wired for connection to customer-provided PC, (System Requirements: Windows 98 / XP / Vista / 7, USB port)
