» » » » Knuth Horizontal CNC Drill Press/Milling Center HBZ 800

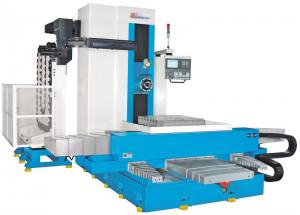

Knuth Horizontal CNC Drill Press/Milling Center HBZ 800
|
|
60 tool stations and 4-sided machining let you machine large, complex parts to give you a competitive edge
- heavy machine body with single-column design
- spindle speed range from 30 to 3000 rpm
- 4-track box way
- high-precision indexing work table with servo drive
- max. table load capacity: 3000 kg
- headstock with programmable 2-step gearbox ensures powerful chip removal across the entire speed range
- powerful AC spindle motor, 15/18.5 kW
- oil-cooled headstock with temperature control ensures optimum performance in demanding applications
- flexible work space cover included with standard equipment
- rapid feed speeds up to 15 m/min
- large table for heavy parts up to 3000 kg
- oil-cooled high-speed spindle, up to 3000 rpm
- automatic transmission for powerful chip removal
Specifications - HBZ 800 - Horizontal CNC Drill Press/Milling Center
working area |
|
travel X-axis |
2000 mm |
travel Y-axis |
1200 mm |
travel Z-axis |
1200 mm |
table dimensions |
800x800 mm |
table load capacity (max.) |
3000 kg |
number of T-slots |
7 Pieces |
T-slots, width |
22 mm |
rotation speed of rotary table |
4 rpm |
indexing |
1 ° |
spindle axis-to-table surface distance |
0 - 1200 mm |
spindle nose-to-table distance |
275 - 1475 mm |
headstock |
|
spindle speed |
30 - 3000 rpm |
spindle mount |
BT 50 |
draw bolts |
MAS-P50T-1 |
feed |
|
rapid feed X-axis |
15000 mm/min |
rapid feed Y-axis |
12000 mm/min |
rapid feed Z-axis |
15000 mm/min |
work feed X-axis |
1 - 6000 mm/min |
work feed Y-axis |
1 - 6000 mm/min |
work feed Z-axis |
1 - 6000 mm/min |
tool-changer |
|
number of tool stations |
60 Pieces |
tool-change time tool/tool |
13 s |
tool weight max. |
25 kg |
tool size Ø x L (max.) |
125x400 mm |
tool selection |
bidirektional / bi-directional |
drive capacity |
|
motor rating main drive (cont./30 min) |
15/18,5 kW / 20/25 Hp |
motor rating for X-axis drive |
7 kW |
motor rating for Y-axis drive |
7 kW |
motor rating for Z-axis drive |
7 kW |
motor rating for B-axis drive |
4 kW |
measures and weights |
|
overall dimensions |
4900x5100x3250 mm |
weight |
18000 kg |
Control - HBZ 800 - Horizontal CNC Drill Press/Milling Center
Fanuc 18i-MB
- Port for memory card is located at the LCD display
- RS-232 port
- Ethernet function
- 1024 KB storage for parts programs
- multiple languages
- 5-axis machining
- easy programming at shop-level
- Fixed cycles for easy parts programming
- Acceleration and Deceleration tuning
- Anti-jerk control
- Accuracy compensation feature
- Axis mirroring
- DNC control via memory card or RS 232 interface
- Manual program intervention and return to operation
- Custom macro to extend existing or generate new fixed cycles
- Constant surface quality thanks to nano-interpolation
- Machining of NURB curves possible
- Look Ahead: Optimum acceleration and deceleration of machining speeds by pre-reading several blocks of the parts program
- process time and parts counter
- Graphic programming support Manual Guide 0i
|
|
Standard equipment - HBZ 800 - Horizontal CNC Drill Press/Milling Center
Fanuc 18i-MB with Manual Guide 0i, oil-cooled headstock, automatic central lubrication, coolant system, spindle blow-out system, control cabinet with heat-exchanger, spiral chip conveyor, electronic hand-wheel, work lamp, RS-232 interface , operating tools, feet and bolts
|
|
|
|
|
|
|
|
|
|
