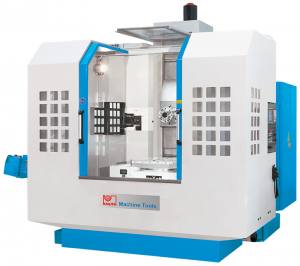

Knuth Horizontal CNC Machining Center Quadrant 1500

311.167,00 EURplus 19 % tax, excl. Shipping costs

Product No.:
No longer available (abroad may vary)
Weight per unit:
22000 kg

Knuth Horizontal CNC Machining Center Quadrant 1500


Horizontal Bed-type CNC Milling Center with rotary table - maximum precision plus maximum machining power

  • heavy machine body and special T-bed design for utilizing the advantages of horizontal machining plus superior rigidity allowing high workpiece weights
  • machine bed, table and column are made of premium cast-iron to provide optimum damping properties
  • wide box-ways on the machine bed ensure superior stability and excellent geometrical accuracy
  • the wide table console and the on Y traversable column rest securely on the guides across the entire travel distance; no tilting moment, reduced wear
  • large T-slot rotary table can be positioned in increments of 1º allowing cost-effective multi-sided machining of complex and large workpieces in one setup
  • the massive headstock with a torsion-free and bending-resistant main spindle moves on premium bearings in a heavily ribbed machine column with large linear guideways
  • powerful servo drives and preloaded ball screws ensure optimum dynamics and precision
  • the tool-changer with dual-arm gripper and 40 tool stations is mounted outside the work area, where it is well protected and easily accessible
  • the Fanuc control provides maximum reliability and functionality
  • the easily accessible enclosure is included in the standard equipment and features a high-performance coolant system and a chip conveyor
  • automatic central lubrication for low-maintenance operation

Specifications - Quadrant 1500 - Horizontal CNC Machining Center

working area
travel X-axis 1500 mm
travel Y-axis 1200 mm
travel Z-axis 1100 mm
minimum turning angle, indexing table 1 °
table dimensions 1200x1200 mm
table load capacity (max.) 5000 kg
number of T-slots 5 Pieces
T-slots, width 22 mm
T-slots, spacing 200 mm
spindle speed 6000 rpm
spindle mount BT 50
spindle nose-to-table distance 330 - 1430 mm
spindle center-to-table distance 0 - 1200 mm
rapid feed X-axis 15000 mm/min
rapid feed Y-axis 15000 mm/min
rapid feed Z-axis 15000 mm/min
work feed 1 - 5000 mm/min
number of tool stations 40 Pieces
tool size Ø x L (max.) 125x400 mm
tool weight max. 20 kg
positioning accuracy 0,025 mm
repeatability 0,012 mm
accuracy, indexing table 20 "
repeatability, indexing table 2 "
drive capacity
motor rating main drive (cont./30 min) 18,5/22 kW / 25/30 Hp
total power consumption 50 kVA
measures and weights
overall dimensions 6000x6000x5300 mm
weight 22000 kg

Control - Quadrant 1500 - Horizontal CNC Machining Center

Fanuc 0i-MD mit Manual Guide 0i

High Performance for Excellent Productivity

  • Advanced fixed cycles, graphical support
  • Boring Pattern Cycles
  • Milling Pattern Cycles
  • G & M Code help
  • ISO CODE Programming Assistant
  • Powerful program preview function (Look Ahead) for maximum machining speed and accuracy
  • Graphic simulation for reliable control of NC programs
  • standardized milling and boring cycles for simplified parts programming
  • High compatibility with existing Fanuc CNC programs

A wealth of world-class functions in the Basis CNC ensures maximum productivity

  • Port for storage card, processing of storage card in DNC operation
  • Advanced Look Ahead function
  • NANO Interpolation
  • Ethernet Interface
  • High-Performance digital Servo System on all axes
  • optional free M Codes
  • optional relay outputs
  • 512 KB storage for parts programs / Package A
  • multiple languages
  • Advanced help function and alarm/operating archive
  • High-speed Machining: better parts even faster
  • RS232 port
  • Tool life time management for maximum machine utilization
  • process time and parts counter

Standard equipment - Quadrant 1500 - Horizontal CNC Machining Center

Fanuc 0i MD with Manual Guide 0i, indexing table 1°, electronic hand-wheel, 40-station tool changer with dual-arm gripper, chip conveyor and chip container, full machine enclosure, coolant system, automatic central lubrication, work space lighting, signal lamp to indicate lubricant loss, spray gun for rinsing, compressed air gun, operating tools, operating manual and programming instructions


Accessories / Tools - Quadrant 1500 - Horizontal CNC Machining Center

Coolant flow through spindle
Linear Scale
Collet Chuck MAS-BT50
  • Collet Chuck BT50-ER32
  • Collet Chuck BT50-ER40
HNCS 100V Hydraulic Machine Vise
HNCS 130V Hydraulic Machine Vise
HNCS 160V Hydraulic Machine Vise
HNCS 200V Hydraulic Machine Vise
De Luxe Clamping Tool Set 14/M12
Power Worker Metal Cutter
