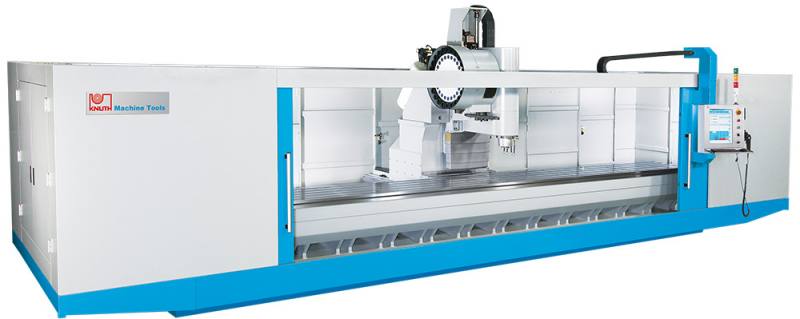

Knuth Moving Column Vertical CNC Machining Center Matrix 4000


263.812,00 EURplus 19 % tax, excl. Shipping costs



Product No.:
181061
Shippingtime:
Weight per unit:
20000 kg



Knuth Moving Column Vertical CNC Machining Center Matrix 4000



Powerful, precise, and robust - for efficient milling of very large and heavy parts

  • the solid cast-iron work table rests on the steel machine frame providing maximum machine rigidity
  • moving column design combined with a gear drive allows dynamic rapid feed speeds up to 20 m/min, regardless of workpiece weights
  • zero-backlash moving column feed across the entire travel distance is guaranteed by two gearboxes mounted against each other: this allows immediate power transmission onto the gears and ensures a high degree of efficiency and minimum energy loss
  • the long milling table holds loads up to 2000 kg and allows simultaneous clamping of multiple parts, or long-bed machining
  • equipped with a GPlus 450 control, the Matrix impresses experienced users with its flexibility, user-friendly operation as well as easy and quick programming of graphics supported milling and drilling cycles
  • includes totally enclosed work space, 24-station tool turret, and 3-axis central lubrication system
  • powerful spindle with speeds up to 12,000 rpm spindle cooler optional

Specifications - Matrix 4000 - Moving Column Vertical CNC Machining Center

working area
travel X-axis 4000 mm
travel Y-axis 600 mm
travel Z-axis 600 mm
table dimensions 600x4000 mm
table load capacity 2000 kg
number of T-slots 5 Pieces
T-slots, width 18 mm
T-slots, spacing 100 mm
spindle nose-to-table surface distance 110 - 710 mm
headstock
speed range 60 - 8000 rpm
headstock torque 95,5 Nm
spindle mount BT 40
feed
work feed X-axis 1 - 20000 mm/min
work feed Y-axis 1 - 20000 mm/min
work feed Z-axis 1 - 20000 mm/min
tool head
number of tool stations 24 Pieces
tool size Ø x L (max.) 127x300 mm
tool weight max. 7 kg
tool-changing time chip/chip 1,2 s
tool-change time tool/tool 2,5 s
accuracies
positioning accuracies ± 0,005 mm / 0,0002"
repeatabilities ± 0,003 mm / 0,0001"
drive capacity
motor rating main drive (cont./30 min) 7,5/11 kW / 10/15 Hp
motor rating for X-axis drive 5 kW
motor rating for Y-axis drive 3,5 kW
motor rating for Z-axis drive 3,5 kW
measures and weights
overall dimensions 9000x4000x3000 mm
weight 20000 kg

Control - Matrix 4000 - Moving Column Vertical CNC Machining Center

GPlus 450 Fräsen

GPlus 450 - Windows-based CNC control for milling machines


  • Easy, user-oriented operation allows quick creation of programs
  • 450 NC blocks/sec, 200 sets LookAhead
  • 40 GB hard drive to store NC programsbold;">
  • Intuitively programmable, customizable machining cycles with a large variety of help graphics in the Cycle Editor
  • 10/100 MBit Ethernet interface allows remote diagnostics from anywhere in the world; USB port
  • No knowledge of G & M Code Instructions necessary
  • Workshop-oriented programming at the control or external programming (CAD/CAM)
  • received the TechStar 2008 award for most innovative future-oriented products
  • The GPlus 450 features a 17“ TFT color monitor with touch-screen display to display all data for a user-friendly programming experience and easy operation
  • Status messages show the user the current state of the control
  • Frequently used machining sequences can be programmed quick and easy using the graphics-based Cycle Editor.
  • With the use of Input masks, the Cycle Editor guides the operator intuitively and self-explanatory through the editing steps. A separate Help Graphic is available for every definable parameter
  • Knowledge about the G and M Code Command Set or special programming language are NOT needed. However, experienced users have the ability to use DIN/ISO programming to create NC programs.
  • Graphic simulation with integrated zoom function for a detailed display of actual chip removal
  • A standard 10/100 MBit Ethernet interface and USB port allow fast data transfers from externally created programs (CAD/CAM) and saving these on the GPlus 450 hard drive
  • single CPU concept (advantage: ties up only 2% of the system capacity)
  • 40 GB storage, 2.0 GHz Intel Celeron processor, 256 MB RAM
  • block processing time: 450 NC blocks per sec
  • worldwide remote diagnostics
  • Profibus, CANopen, DeviceNet implementation is possible
  • machine can be integrated in factory networks
  • technology-specific cycles for milling and drilling

Cycle overview M (Milling):

  • Milling cycles: circular pocket, rectangular pocket, arc pocket, face milling
  • Drilling cycles: basic drilling, drilling with dwell time, deep-hole drilling, tapping, reaming
  • Drill patterns: row of holes, Hole circle / segment, free drill positioning, rectangle / parallelogram, grid

Why PC Technology?

  • PC Technology serves as platform for high-performance CNCs, since it allows us to automatically take part in the development programs of leading manufacturers of motherboards, hard drives, software, and operating systems. Thus, these manufacturers provide us with an "extended workbench". The rapid development of these components gives the KNUTH GPlus 450 a special edge.
  • Optionally, the GPlus 450 software may be installed on a regular office PC (System Requirements: Intel processor) whereby the user interface is fully identical with the machine control user interface. This allows for a very realistic operation and programming training of newcomers. The created NC programs can be tested and simulated and are fully executable on the machine's control.

Maximized PC power results in optimized speed, surface quality, and accuracy of the machine tool and ensures high dynamics and ease of use. This makes the GPlus 450 ideally suited for a large variety of machining technologies, e.g. milling (form construction). Programming of technology-specific machining cycles is quick and easy; therefore, this control can be used for both single part and small batch productions.

The portable hand control unit features an ergonomic design with two Acknowledge buttons (safety enable). The machine axes can only be moved, if one Acknowledge button is activated. Two rotary selector switches are provided for axis selection and feed speed setting. Additionally, the hand control unit is equipped with an emergency stop button, an electronic hand-wheel and machine-dependent function keys to simplify machine set-up.



Standard equipment - Matrix 4000 - Moving Column Vertical CNC Machining Center

GPlus 450 control, 24-station tool changer, coolant system, totally enclosed work space, automatic central lubrication, spindle blow-out system, control cabinet with heat-exchanger, electronic hand-wheel, fastening bolts, work lamp, operating tools, operating manual and programming instructions

Accessories / Tools - Matrix 4000 - Moving Column Vertical CNC Machining Center

12000 rpm spindle and spindle cooler
32-station tool changer
Coolant flow through spindle
Milling Chuck WELDON BT 40
  • Milling Chuck WELDON BT 40 / Ø 10 mm
  • Milling Chuck WELDON BT 40 / Ø 12 mm
  • Milling Chuck WELDON BT 40 / Ø 16 mm
  • Milling Chuck WELDON BT 40 / Ø 20 mm
  • Milling Chuck WELDON BT 40 / Ø 25 mm
  • Milling Chuck WELDON BT 40 / Ø 32 mm
  • Milling Chuck WELDON BT 40 / Ø 6 mm
  • Milling Chuck WELDON BT 40 / Ø 8 mm
End Milling Set HSS TiN
End Mill Set DIN 844 B
End Milling Set, 9 pcs., HSS
Indexable Insert End Mills Set 25 mm
Insert / Replacement Tips
  • Insert / 10 Replacement Tips, R (round)
  • Insert / 10 Replacement Tips, S90° (square)
  • Insert / 10 Replacement Tips, T60° (triangular)
Electronic Edge Tracer
Edge Tracer Set
Assembly Stand
Roughing Shank Cutter 10 pcs.
