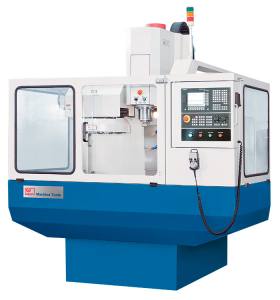

Knuth CNC Vertical Machining Center EcoCenter 650
|
| |
|
Cost-effective CNC manufacturing and small batch production
- rapid feed with speeds up to 24 m/min plus a reliable 10-station tool changer for streamlined, cost-effective batch production
- the entire machine frame is made of premium cast-iron
- the excellent rigidity of this machine is based on its special construction featuring a vertical A-column with hardened and ground rectangular guides
- linear guides on X and Y ensure high precision and dynamics
- powerful main drive motor up to 7.5 kW for high headstock torque across a wide speed range
- powerful servo drives on all axes
- Siemens 808 D control: cost-effective, easy to handle, superior reliability backed by worldwide service, including software for external programming
- side and front panels of the enclosure are hinged to provide plenty of space for loading and unloading
- automatic central lubrication system
- standard electronic hand-wheel
Specifications - EcoCenter 650 - CNC Vertical Machining Center
| working area |
|
| travel X-axis |
650 mm |
| travel Y-axis |
400 mm |
| travel Z-axis |
500 mm |
| table dimensions |
920x330 mm |
| table load capacity |
300 kg |
| number of T-slots |
3 Pieces |
| T-slots, width |
14 mm |
| T-slots, spacing |
100 mm |
| spindle nose-to-table surface distance |
100 - 600 mm |
| throat |
445 mm |
| headstock |
|
| speed range |
100 - 8000 rpm |
| spindle mount |
BT 40 |
| feed |
|
| rapid feed X-axis |
24000 mm/min |
| rapid feed Y-axis |
24000 mm/min |
| rapid feed Z-axis |
8000 mm/min |
| work feed X-axis |
1 - 15000 mm/min |
| work feed Y-axis |
1 - 15000 mm/min |
| work feed Z-axis |
1 - 15000 mm/min |
| tool head |
|
| number of tool stations |
10 Pieces |
| tool size Ø x L (max.) |
90x300 mm |
| tool weight max. |
8 kg |
| tool-change time tool/tool |
7 s |
| accuracies |
|
| positioning accuracies |
± 0,01 mm / ± 0,00039" |
| repeatabilities |
± 0,004 mm / ± 0,00016" |
| drive capacity |
|
| motor rating main drive |
7,5 kW |
| torque of drive X |
6 Nm |
| torque of drive Y |
6 Nm |
| torque of drive Z |
11 Nm |
| total power consumption |
15 kVA |
| measures and weights |
|
| overall dimensions |
2110x2040x2050 mm |
| weight |
3100 kg |
Control - EcoCenter 650 - CNC Vertical Machining Center
Siemens Sinumerik 808 D Fräsen
Standard equipment - EcoCenter 650 - CNC Vertical Machining Center
Siemens 808 D control, 10-station tool changer, electronic hand-wheel, servo drive for all 3 axes, enclosed work space, chip tray, automatic central lubrication, Ethernet, USB interface, LED work lamp, operating tools, operator manual
|
| |
