Knuth DL CNC 3000 CNC Box-Way Lathe

Heavy Box-Way Lathe with Siemens control featuring center width up to 3050 mm

Knuth DL CNC 3000 CNC Box-Way Lathe:

  • heavy machine bed made of premium cast-iron with hardened and ground guideways
  • large capacity spindle bores up to 105 mm
  • 4 hydraulically shifted gear steps for infinitely variable spindle speed ensure high torque at the headstock
  • high-torque drives and preloaded ball screws on all axes
  • Siemens 808 D is an intuitive, easy to learn control system with extensive cycle options and a Profile Editor utility for easy programming – ideal for batch and single part production of complex workpieces
  • Sinumerik 808 on PC Software for external programming and data management is included
  • also included are a powerful coolant system and a central lubrication unit
  • plus free 1-day training in Wasbek


Specifications - Knuth DL CNC 3000 CNC Box-Way Lathe:



Working area

Workpiece length (max.)

Turning diameter over bed

Turning diameter over support

Travel X-axis

Travel Z-axis



3.050 mm

630 mm

350 mm

340 mm

2.850 mm

Headstock

Speed range

Headstock torque

Spindle mount

Lathe chuck diameter

Spindle bore

Spindle bore in chuck





17 - 1.000 rpm

2.079 Nm

D1-11

325 mm

105 mm

104 mm



Feed

Rapid feed X-axis

Rapid feed Z-axis





6.000 mm/min

10.000 mm/min



Tool head

Number of tool stations

Tool shank dimensions





4 Pieces

32x32 mm



Tailstock

Tailstock taper

Tailstock quill diameter

Tailstock quill stroke



MT 5

100 mm

250 mm

Accuracies

Positioning accuracy X-axis

Positioning accuracy Z-axis

Repeatability X-axis

Repeatability Z-axis





0,02 mm

0,04 mm

0,01 mm

0,025 mm



Drive capacity

Motor rating main drive

Motor rating for X-axis drive

Motor rating for Z-axis drive

Total power consumption





11 kW

1,5 kW

3,5 kW

18,2 kVA



Measures and weights

Overall dimensions

Weight





5.100x1.500x1.700 mm

5.000 kg



Control:

Siemens Sinumerik 808 D Drehen

  • self-explanatory, yet powerful CNC functions ensure highest precision at the workpiece and short machining times
  • "programGuide Basic" for easy programming via graphical cycle masks, plus a practical contour calculator
  • The Sinumerik 808 D Software package for the PC simplifies handling of the control. It can be used as practical training software to program and simulate workpieces offline. This software is included in the standard equipment and can also be used for presentation purposes.

Standard equipment:

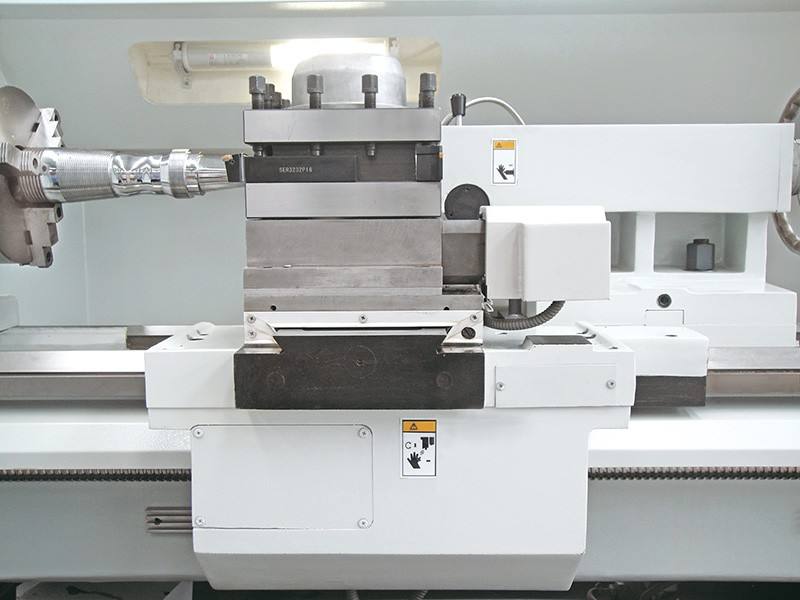

Siemens 808 D control, automatic 4-station tool changer, electronic hand-wheel, 3-jaw chuck Ø 325 mm, Sinumerik 808 on PC-Software, USB interface, automatic central lubrication, coolant system, work lamp, operating tools, operating manual and programming instructions
