Knuth Universal Heavy-Duty Lathe DL B 465/4000

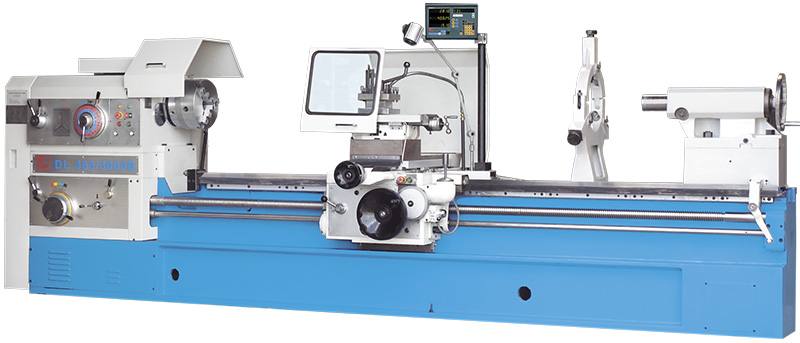

DL B 465/3000 shown


Rigid and Accurate – for machining of part diameters up to 105 mm


  • extra heavy ribbed machine bed
  • induction-hardened and ground guideways
  • massive headstock with high-precision spindle running in tapered roller bearings
  • Gears are hardened and ground
  • large spindle bore 105 mm
  • central, practical controls for feeds and thread leads
  • wide spectrum of diametric, inch, module and metric threads
  • support and top slide are designed for high cutting forces
  • Joystick control for X and Z feeds is mounted directly to support
  • high-capacity motor up to 11 kW for powerful chip removal
  • overload clutch enclosed in apron

3-axis position indicator

  • more accuracy
  • lower error rate
  • increased productivity
  • resulting in valuable time savings
  • for increased productivity
  • easy to read display
  • operator-specific features
  • convenient keyboard layout
  • resolution: 0.01/ 0.005 mm
  • default coordinates
  • axis position is maintained when display is turned off
  • hole circle pattern calculation
  • calculator function
  • storage for 10 tools
  • radius / diameter toggle
  • mm/inch conversion
  • easy expansion and maintenance-free operation
  • display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

Specifications - DL B 465/4000 - Universal Heavy-Duty Lathe

working area
center width 4000 mm
turning diameter over bed (max.) 950 mm
turning diameter over support (max.) 670 mm
turning diameter over gap bridge (max.) 1120 mm
travel X-axis 500 mm
travel Z1-axis 200 mm
gap bridge length 390 mm
bed width 550 mm
swing range of top slide ±90 °
headstock
spindle speed (18) 6 - 800 rpm
spindle bore 105 mm
spindle taper MT 5
feed
feed X-axis 0,05 - 12,15 mm/R
feed Z-axis 0,1 - 24 mm/R
rapid feed X-axis 4000 mm/min
rapid feed Z-axis 4000 mm/min
tapping
tapping, metric (50) 1-240 mm
tapping, diametric (24) 28-1 DP
tapping, module (53) 0,5 - 120 mm
tapping, whitworth (26) 14-1 GPZ
tailstock
tailstock quill diameter 100 mm
tailstock taper MT 5
tailstock quill stroke 250 mm
tailstock traverse adjustment ± 15 mm / ± 0,6"
drive capacity
motor rating headstock 11 kW
supply voltage 380 V
measures and weights
overall dimensions 6010x1550x1670 mm
weight 6600 kg

Standard equipment - DL B 465/4000 - Universal Heavy-Duty Lathe

3-axis position indicator, 3-jaw chuck Ø 325 mm, 4-jaw face plate chuck Ø 500 mm, face plate Ø 950 mm, change gears, 4-station tool holder, coolant system, steady rest 75-320 mm, follow rest 30-80 mm, chuck guard, protective shield for support, halogen lights, dead center, operating tools, operator manual





Accessories / Tools - DL B 465/4000 - Universal Heavy-Duty Lathe

Steady rest 280-480 mm
Coolant Concentrate 5 Ltr.
Radius Cutting Head
Quick-Set Spindle Bore Stop Size 10 90-110mm
Quick-Change Tool Holder Set WC
