Knuth Universal Heavy-Duty Lathe DL E Heavy 500/5000






Knuth Universal Heavy-Duty Lathe DL E Heavy 500/5000

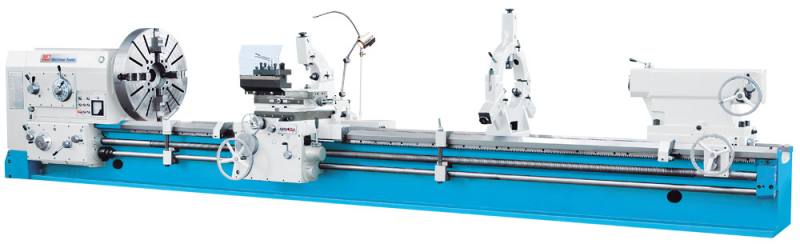

DL E Heavy 500/1500 shown


spindle bore 130 mm, large turning diameter and large center widths maximum stability and high accuracy for roughing and finishing operations


  • 22 kW motor ensures high cutting power
  • induction hardened and ground guideways
  • large spindle bearings
  • heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum
  • Joystick control for X and Z feeds is mounted directly to support
  • hand wheel for tailstock adjustment
  • separate rapid feed motor for feed in X and Z direction
  • overload clutch enclosed in apron
  • sturdy multi-disk clutch for headstock drive

3-axis position indicator

  • more accuracy
  • lower error rate
  • increased productivity
  • resulting in valuable time savings
  • for increased productivity
  • easy to read display
  • operator-specific features
  • convenient keyboard layout
  • resolution: 0.01/ 0.005 mm
  • default coordinates
  • axis position is maintained when display is turned off
  • hole circle pattern calculation
  • calculator function
  • storage for 10 tools
  • radius / diameter toggle
  • mm/inch conversion
  • easy expansion and maintenance-free operation
  • display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

includes completely assembled 3-axis position indicator

Specifications - DL E Heavy 500/5000 - Universal Heavy-Duty Lathe

working area
center width 5000 mm
turning diameter over bed (max.) 1000 mm
turning diameter over support (max.) 650 mm
travel X-axis 510 mm
travel Z-axis 4800 mm
travel Z1-axis 300 mm
workpiece weight (max.) 6000 kg
bed width 755 mm
swing range of top slide ± 180 °
headstock
spindle speeds (right) (21) 3,15 - 315 rpm
spindle speeds (left) (12) 3,15 - 400 rpm
spindle bore 130 mm
spindle mount ISO A2-15
feed
feed X-axis 0,064 - 12 mm/R
feed Z-axis 0,032 - 6 mm/R
feed Z1-axis 0,016 - 3 mm/R
rapid feed X-axis 1870 mm/min
rapid feed Z-axis 3740 mm/min
tapping
tapping, metric (45) 1-120 mm
tapping, diametric (42) 30 - 1/4 DP
tapping, module (46) 0,5 - 60 mm
tapping, whitworth (48) 0,5 - 60 GPZ
tailstock
tailstock quill diameter 160 mm
tailstock quill taper metrisch 80
tailstock quill stroke 300 mm
tailstock traverse adjustment ± 2,5 mm / ± 0,1"
drive capacity
motor rating headstock 22 kW
supply voltage 400 V
measures and weights
overall dimensions 8100x1810x1790 mm
weight 12650 kg

Standard equipment - DL E Heavy 500/5000 - Universal Heavy-Duty Lathe

3-axis position indicator, 4-jaw face plate chuck Ø 1000 mm, coolant system, steady rest 50-470 mm, follow rest 50-220 mm, work lamp, center points, reducing sleeves, foundation bolts, central lubrication, operating tools, operator manual


Accessories / Tools - DL E Heavy 500/5000 - Universal Heavy-Duty Lathe

Steady rest 220-630 mm
