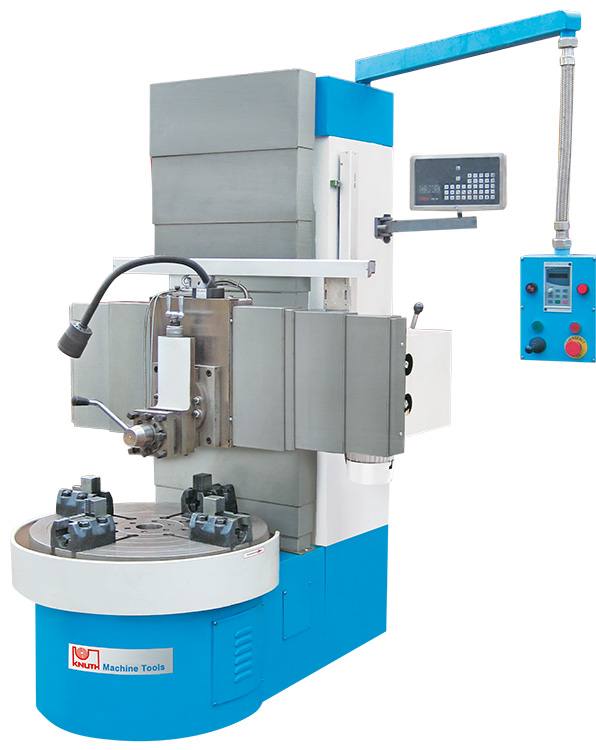

Knuth Vertical Lathe VDL 800
|
| |
|
Cost-effective Vertical Lathe for large turning diameters
- massive headstock and heavy machine bed with wide boxways ensure maximum rigidity during heavy-duty machining
- flat profile of headstock allows easy tooling and unloading of machine
- optimized design for easy accessibility via crane and fork-lift
- all guideways are protected effectively with solid covers
- automatic feed on X and W axis, without thread-cutting
- face plate chuck with individually clampable jaws, with a maximum clamping diameter of 800 mm
- infinitely variable main spindle drive with powerful 7.5 kW motor and 2-step gears
3-axis position indicator
- more accuracy
- lower error rate
- increased productivity
- resulting in valuable time savings
- for increased productivity
- easy to read display
- operator-specific features
- convenient keyboard layout
- resolution: 0.01/ 0.005 mm
- default coordinates
- axis position is maintained when display is turned off
- hole circle pattern calculation
- calculator function
- storage for 10 tools
- radius / diameter toggle
- mm/inch conversion
- easy expansion and maintenance-free operation
- display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
Specifications - VDL 800 - Vertical Lathe
| working area |
|
| rotating diameter (max.) |
800 mm |
| machining height (max.) |
500 mm |
| travel X1 axis, upper support |
500 mm |
| travel Z1 axis , upper support |
80 mm |
| traverse W travel vertical / steps |
500 mm |
| swivel range of upper tool holder |
360 ° |
| workpiece length (max.) |
600 mm |
| workpiece weight (max.) |
600 kg |
| headstock |
|
| speed range |
(2) 0 - 160 rpm |
| rotary table diameter |
700 mm |
| feed |
|
| feed speed X-axis |
5 - 123 mm/min |
| feed W-axis |
5 - 123 mm/min |
| tool holder |
20x50 mm |
| tool weight max. |
10 kg |
| drive capacity |
|
| motor rating main drive |
7,5 kW |
| motor rating X |
0,75 kW |
| motor rating Z |
0,75 kW |
| measures and weights |
|
| overall dimensions |
1500x1500x2000 mm |
| weight |
1800 kg |
Standard equipment - VDL 800 - Vertical Lathe
2-axis position indicator, tool holder, vertical, tool holder,horizontal, automatic central lubrication, work lamp, anchor bolts, operating tools, operator manual
Accessories / Tools - VDL 800 - Vertical Lathe
| Jaws, 4-piece set |
| Tool turret (electric) |
| 3-jaw chuck |
| 4-jaw chuck |
|
| |
| |
| |
